Product Summary

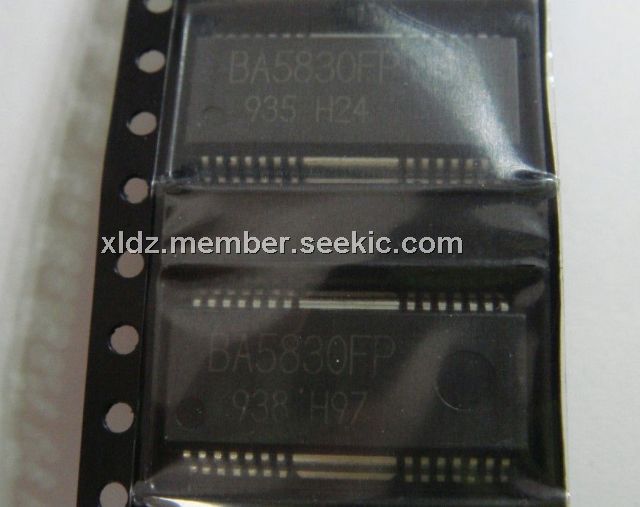

The BA5830FP is a Power driver for compact disc player.

Parametrics

BA5830FP absolute maximum ratings: (1)Supply voltage, preVCC, powVCC: 18V; (2)Input terminal voltage, VIN: 18V; (3)Power dissipation, PD: 2.2W; (4)Maximum output current, Lomax: 1A; (5)Operating temperature range, Topr: -40 to +85℃; (6)Storage temperature range, Tstg: -55 to +150℃.

Features

BA5830FP features: (1)4CH BTL Driver; (2)Employs the HSOP-M28PIN power package for compaction; (3)Has a wide dynamic range. (PreVcc=Pow, Vcc=8V,RL=8Ω、6.0V(typ.); (4)Incorporates the thermal shutdown circuit; (5)Separating Vcc into Pre and Power (Power divides into CH1/2 and CH3/4), can make better Power efficiency; (6)Switches CH4 input by CNT; (7)Incorporates mute function by CNT terminal and mute terminal; (8)A variable regulator is built in.

Diagrams

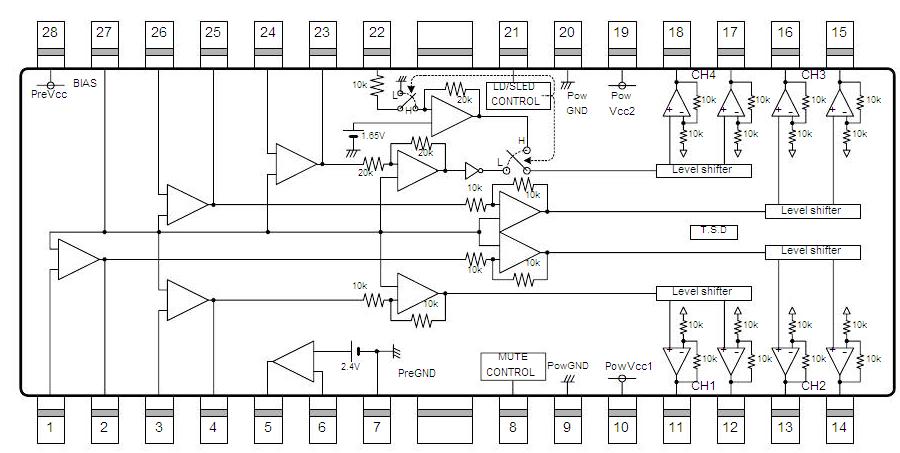

BA5830FP block diagram
