Product Summary

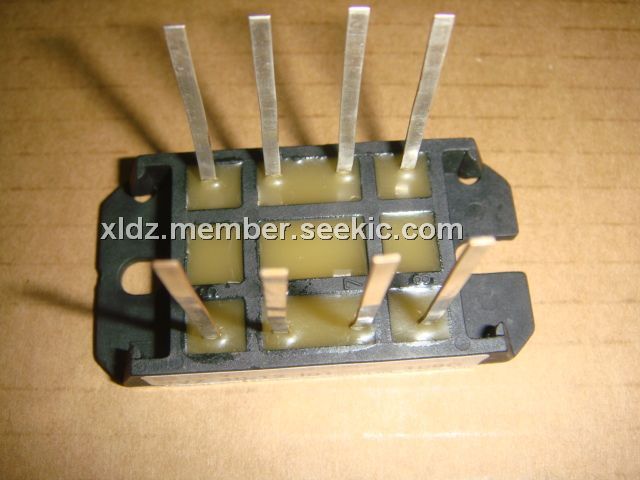

The VVZ40-12IO1 is a three phase half controlled rectifier bridge.
Parametrics
VVZ40-12IO1 maximum ratings: (1)IdAV at TK = 100℃; module: 34 A; (2)IdAVM module: 43 A; (3)IFRMS, ITRMS per leg: 25 A; (4)IFSM, ITSM: at TVJ = 45℃; t = 10 ms (50 Hz), sine: 320 A; at VR = 0, t = 8.3 ms (60 Hz), sine: 340 A; at TVJ = TVJM, t = 10 ms (50 Hz), sine: 290 A; at VR = 0, t = 8.3 ms (60 Hz), sine: 310 A; (5)I2t : at TVJ = 45℃, t = 10 ms (50 Hz), sine: 510 A2s; at VR = 0, t = 8.3 ms (60 Hz), sine: 485 A2s; at TVJ = TVJM, t = 10 ms (50 Hz), sine: 420 A2s; at VR = 0, t = 8.3 ms (60 Hz), sine: 400 A2s; (6)(di/dt)cr at TVJ = TVJM, f =400 Hz, tP =200 μs, VD = 2/3 VDRM, IG = 0.3 A, diG/dt = 0.3 A/μs: repetitive, IT = 50 A :150 A/μs; non repetitive, IT = 1/3 . IdAV: 500 A/μs; (7)(dv/dt)cr at TVJ = TVJM; VDR = 2/3 VDRM, RGK = ∞; method 1 (linear voltage rise): 1000 V/μs; (8)VRGM: 10 V.
Features
VVZ40-12IO1 features: (1)Package with DCB ceramic base plate; (2)Isolation voltage 3600 V~; (3)Planar passivated chips; (4)Soldering terminals; (5)UL registered E 72873.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VVZ40-12io1 |
Ixys |
SCR Modules 40 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
VVZ40 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
VVZ40-12io1 |
Ixys |
SCR Modules 40 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
|
VVZ40-14io1 |
Ixys |
SCR Modules 40 Amps 1400V |
Data Sheet |
Negotiable |
|
||||
|
VVZ40-16io1 |
Ixys |
SCR Modules 40 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
