Product Summary

The MCIMX515CJM6C multimedia applications processor represents Freescale Semiconductor latest addition to a growing family of multimedia-focused products offering high performance processing optimized for lowest power consumption. The MCIMX515CJM6C processor features Freescale advanced and power-efficient implementation of the ARM Cortex A8. core, which operates at speeds as high as 800 MHz. Up to 200 MHz DDR2 and mobile DDR DRAM clock rates are supported.

Parametrics

MCIMX515CJM6C absolute maximum ratings: (1)Peripheral Core Supply Voltage VCC: –0.3 to 1.35 V; (2)ARM Core Supply Voltage VDDGP: –0.3 to 1.15 V; (3)Supply Voltage (UHVIO, I2C) Supplies denoted as I/O Supply: –0.5 to 3.6 V; (4)Supply Voltage (except UHVIO, I2C) Supplies denoted as I/O Supply: –0.5 to 3.3 V; (5)USB VBUS VBUS: 5.25 V; (6)Input/Output Voltage Range Vin/Vout: –0.5 OVDD +0.3V; (7)ESD Damage Immunity: Vesd V; (8)Human Body Model (HBM): 2000V; (9)Charge Device Model (CDM): 500V; (10)Storage Temperature Range TSTORAGE: –40 to 125 ℃; (11)Junction Temperature (MCIMX51xD - Consumer) TJ: 105 ℃; (12)Junction Temperature (MCIMX51xC - Industrial) TJ: 125 ℃.

Features

MCIMX515CJM6C features: (1)Smart Speed Technology; (2)Applications Processor; (3)Multimedia Powerhouse; (4)Powerful Graphics Acceleration; (5)Interface Flexibility; (6)Increased Security.

Diagrams

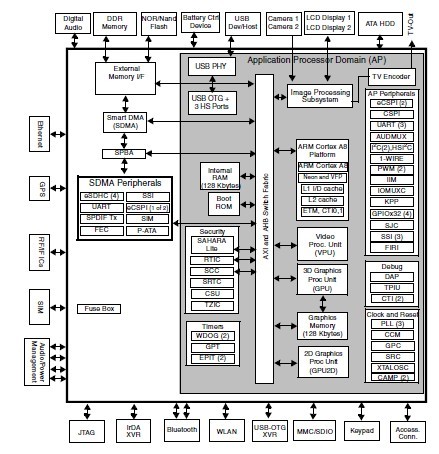

MCIMX515CJM6C block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

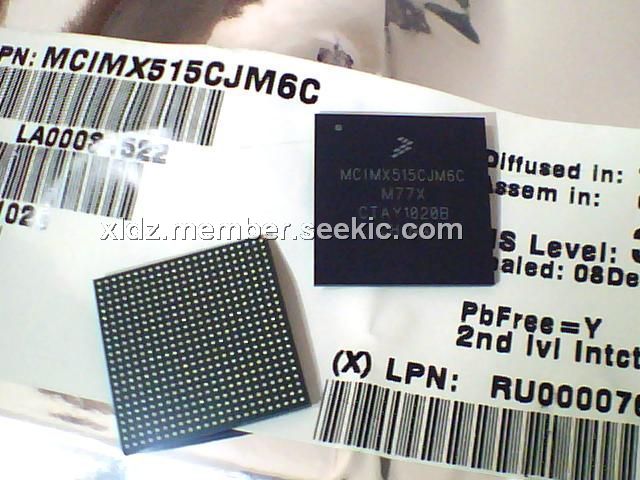

MCIMX515CJM6C
MCIMX515CJM6C

Freescale Semiconductor

Processors - Application Specialized iMX515 App Processor

Data Sheet

0-1: $24.47
1-25: $21.08
25-50: $20.23
50-100: $16.39
MCIMX515CJM6CR2
MCIMX515CJM6CR2

Freescale Semiconductor

Processors - Application Specialized i.MX51 32bit 800 MHz

Data Sheet

0-406: $17.33
406-500: $13.50
500-750: $13.50
