Product Summary

The KBL406 is a 4.0A in-line miniature single phase silicon bridge rectifier.

Parametrics

KBL406 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:600V; (2)Maximum RMS Voltage:420V; (3)Maximum DC Blocking Voltage:600V; (4)Maximum Average Forward Current:4.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):200A; (6)Typical thermal resistance:19℃/W; (7)Maximum Forward Voltage at 4.0A, per element:1.1V; (8)Maximum DC Reverse Current at TJ=25℃:10uA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

KBL406 features: (1)Plastic material has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)Ideal for printed circuit board; (4)Reliable low cost construction utilizing molded plastic technique; (5)Surge overload rating: 200 Amperes peak; (6)Pb free product are available: 99% Sn above can meet RoHS environment substance directive request.

Diagrams

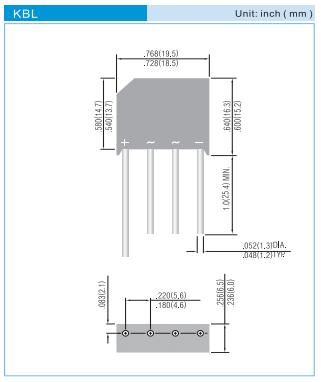

KBL406 Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
KBL406
KBL406

Taiwan Semiconductor

Bridge Rectifiers 4.0 Amp 800 Volt 200 Amp IFSM

Data Sheet

Negotiable
KBL406G
KBL406G

GeneSiC Semiconductor

Bridge Rectifiers 600V 4A Bridge Rectifier

Data Sheet

0-700: $0.23
700-1000: $0.23
1000-2000: $0.22
KBL406-G
KBL406-G


RECTIFIER BRIDGE 4A 600V KBL

Data Sheet

0-500: $0.26
