Product Summary

The 3590S-2-102L is a precision potentiometer designed for use in HMI applications.

Parametrics

3590S-2-102L electrical characteristics: (1)Standard Resistance Range: 200 to 100 K ohms; (2)Total Resistance Tolerance: ±5 %; (3)Independent Linearity: ±0.25 %; (4)Effective Electrical Angle: 3600 ° +10 °, -0 °; (5)Absolute Minimum Resistance: 1 ohm or 0.1 % maximum (whichever is greater); (6)Noise: 100 ohms ENR maximum; (7)Dielectric Withstanding Voltage (MIL-STD-202, Method 301); (8)Sea Level: 1,500 VAC minimum; (9)Power Rating (Voltage Limited By Power Dissipation or 450 VAC, Whichever is Less): 2 watts at +40 ℃; 0 watt at +125 ℃ ; (10)Insulation Resistance (500 VDC): 1,000 megohms minimum; (11)Resolution: see recommended part numbers.

Features

3590S-2-102L features: (1)Bushing mount; (2)Optional AR pin feature; (3)Plastic or metal shaft and bushings; (4)Wirewound; (5)Solder lugs or PC pins; (6)Sealable (Full body seal).

Diagrams

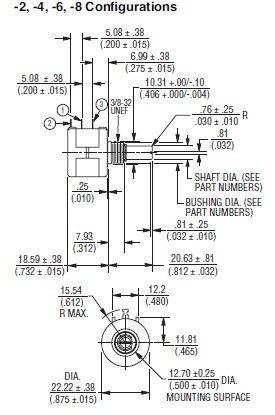

3590S-2-102L dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
3590S-2-102L
3590S-2-102L

Bourns

Precision Potentiometers 7/8"WW 1Kohms 0.25% 10turn

Data Sheet

0-1: $5.93
1-5: $5.53
5-10: $5.33
10-25: $5.04
