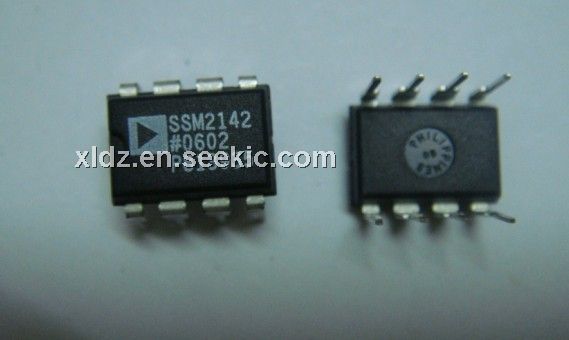

SSM2142PZ

SSM2142PZ, Balanced Line Driver, DIP, ±18V, -0.3 to 70mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	3.50 / Piece
10 ~ 20 :	3.30 / Piece
50 ~ 100 :	3.00 / Piece

PartNumber:: SSM2142PZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-22

From Other Seller

Part Number:SSM2142PZ
US $3.00 - 3.50
Quantity:

piece

Product Summary

The SSM2142PZ is a Balanced Line Driver. The SSM2142PZ is an integrated differential-output buffer amplifier that converts a single-ended input signal to a balanced output signal pair with high output drive. By utilizing low noise thermally matched thin film resistors and high slew rate amplifiers, the SSM2142PZ helps maintain the sonic quality of audio systems by eliminating power line hum, RF interference, voltage drops, and other externally generated noise commonly encountered with long audio cable runs. Excellent rejection of common-mode noise and offset errors is achieved by laser trimming of the onboard resistors, assuring high gain accuracy. The carefully designed output stage of the SSM2142PZ is capable of driving difficult loads, yielding low distortion performance despite extremely long cables or loads as low as 600 W, and is stable over a wide range of operating conditions. The applications of the SSM2142PZ include Audio Mix Consoles, Distribution Amplifiers, Graphic and Parametric Equalizers, Dynamic Range Processors, Digital Effects Processors, Telecommunications Systems, Industrial Instrumentation and Hi-Fi Equipment.

Parametrics

SSM2142PZ absolute maximum ratings: (1)Supply Voltage : ±18 V; (2)Storage Temperature : –60℃ to +150℃; (3)Lead Temperature (Soldering, 60 sec) : +300℃; (4)Junction Temperature : +150℃; (5)Operating Temperature Range : –40℃ to +85℃; (6)Output Short Circuit Duration (Both Outputs) : Indefinite.

Features

SSM2142PZ features: (1)Transformer-Like Balanced Output; (2)Drives 10 V RMS Into a 600 Ω Load; (3)Stable When Driving Large Capacitive Loads and Long Cables; (4)Low Distortion 0.006% typ 20 Hz–20 kHz, 10 V RMS into 600 Ω; (5)High Slew Rate 15 V/μs typ; (6)Low Gain Error (Differential or Single-Ended) 0.7% typ; (7)Outputs Short-Circuit Protected; (8)Available In Space-Saving 8-Pin Mini-DIP Package; (9)Low Cost.
