Product Summary

The MSP430FG437IPN is the ultralow power microcontroller which consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430FG437IPN features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6μs.

Parametrics

MSP430FG437IPN absolute maximum ratings: (1)Voltage applied at VCC to VSS: 0.3 V to 4.1 V; (2)Voltage applied to any pin (see Note): 0.3 V to VCC + 0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature, Tstg: (unprogrammed device): 55℃ to 150℃; (programmed device), 40℃ to 85℃.

Features

MSP430FG437IPN features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Five Power Saving Modes; (3)Wake-Up From Standby Mode in less than 6 μs; (4)16-Bit RISC Architecture,125-ns Instruction Cycle Time; (5)Single-Channel Internal DMA; (6)12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature; (7)Three Configurable Operational Amplifiers; (8) Dual 12-Bit D/A Converters With Synchronization; (9)16-Bit Timer_A With Three Capture/Compare Registers; (10)16-Bit Timer B With Three Capture/Compare-With-Shadow Registers; (11)On-Chip Comparator.

Diagrams

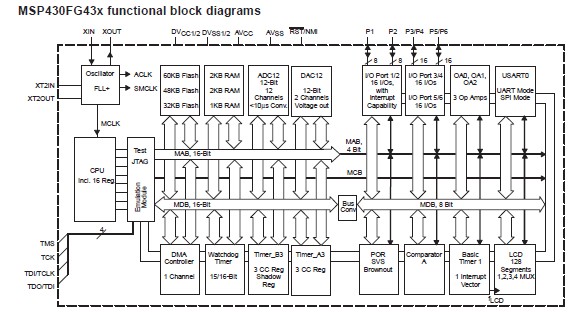

MSP430FG437IPN functional block diagram
