Product Summary

The DB107S is a single phase 1.0 amp surface mount bridge rectifier. The voltage range is from 50 to 1000 Volts. The current is 1.0 Ampere.

Parametrics

DB107S absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 1000V; (2)Maximum RMS Voltage: 700V; (3)Maximum DC Blocking Voltage: 1000V; (4)Maximum Average Forward Rectified Current: 1.0A; (5)Operating Temperature Range, TJ: -65 to +125℃; (6)Storage Temperature Range, TSTG: -65 to +150℃.

Features

DB107S features: (1)Ideal for printed circuit board; (2)Reliable low cost construction utilizing molded plastic technique; (3)High surge current capability; (4)Polarity: marked on body; (5)Mounting position: Any; (6)Weight: 1.0 grams.

Diagrams

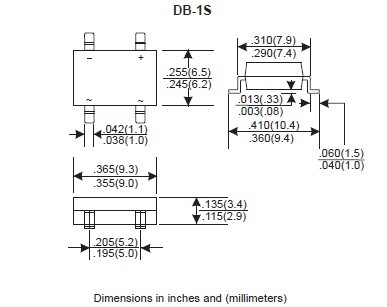

DB107S  Dimensions
