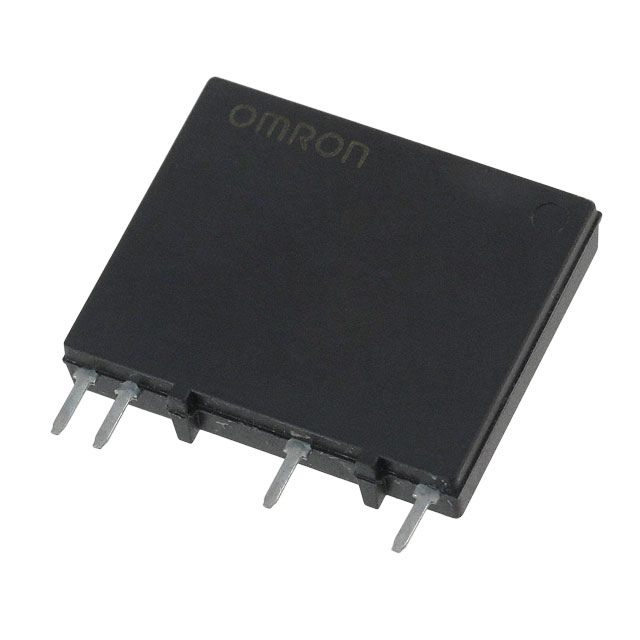

Product Summary

The G3MC-202PL-VD-12VDC is a compact, thin-profile, low-cost solid state relay with reinforced insulation.

Parametrics

G3MC-202PL-VD-12VDC absolute maximum ratings: (1)Operate time: 1 ms max; (2)Release time: 1/2 of load power source cycle + 1 ms); (3)Output ON voltage drop: 1.6 V (RMS) max.; (4)Leakage current: 1 mA max. (at 100 VAC); (5)Insulation resistance: 1,000 MΩ min. (at 500 VDC); (6)Dielectric strength: 2,500 VAC, 50/60 Hz for 1 min (3,000 VAC, 50/60 Hz for 1 min. for G3MC-VD-1); (7)Vibration resistance Malfunction: 10 to 55 Hz, 0.75-mm double amplitude; (8)Shock resistance Malfunction: 1,000 m/s2 (approx. 100G); (9)Ambient temperature Operating: –30℃ to 80℃ (with no icing or condensation); (10)Storage: –30℃ to 100℃ (with no icing or condensation); (11)Approved standards UL File No. E64562, CSA File No. R35535; (12)EN60950 File No. 5925UG (“-VD(-1)” type); (13)Ambient humidity Operating: 45% to 85%; (14)Weight: Approx. 2.5g (Approx. 5g for G3MC-202P(L)-VD-1).

Features

G3MC-202PL-VD-12VDC features: (1)Small bottom surface area (approx. 80% of the conventional G3MB), ideal for close PCB mounting.; (2)DC input and AC output for an applicable load of 1A at 40℃.; (3)Compact, thin-profile SSR of monoblock construction with an all-in-one frame incorporates a PCB, terminals, and a heatsink.; (4)Approved by UL and CSA. VDE certified models available.; (5)Models with reinforced insulation are available.

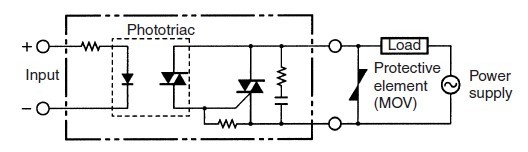

Diagrams

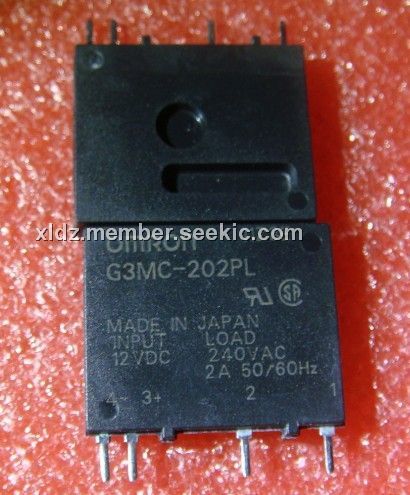

G3MC-202PL-VD-12VDC

G3MC-101P-DC12
G3MC-101P-DC12
Omron Industrial
Solid State Relays Zero Cross 12V Input 1A@100-120V Output
Data Sheet
0-1: $2.45
1-25: $2.23
25-50: $2.04
50-100: $1.88
G3MC-101P-DC24
G3MC-101P-DC24
Omron Industrial
Solid State Relays 24VDC/100-120VAC 1A Zero cross snubber
Data Sheet
0-1: $1.93
1-25: $1.75
25-50: $1.60
50-100: $1.48
G3MC-101P-DC5
G3MC-101P-DC5
Omron Industrial
Solid State Relays 5VDC 100-120VAC 1A
Data Sheet
0-1: $2.26
1-25: $2.11
25-50: $2.02
50-100: $1.91
G3MC-101PL-DC12
G3MC-101PL-DC12
Omron Industrial
Solid State Relays 12VDC/100-120VAC 1A Built-in snubber
Data Sheet
0-1: $2.22
1-25: $2.02
25-50: $1.85
50-100: $1.70
G3MC-101PL-DC5
G3MC-101PL-DC5
Omron Industrial
Solid State Relays 5VDC/100-120VAC 1A Built-in snubber
Data Sheet
0-1: $2.34
1-25: $2.13
25-50: $1.95
50-100: $1.80
G3MC-201PL-DC5
G3MC-201PL-DC5
Omron Industrial
Solid State Relays 5VDC/100-120VAC 1A Built-in snubber
Data Sheet
0-1: $2.74
1-25: $2.49
25-50: $2.29
50-100: $2.11
