Product Summary

The MAL211936101E3 is a aluminum electrolytic capacitor. It is widely applied in military, industrial control, EDP and telecommunication.

Parametrics

MAL211936101E3 absolute maximum ratings: (1)Manufacturer: Vishay; (2)Product Category: Aluminum Electrolytic Capacitors; (3)RoHS: Details; (4)Capacitance: 100uF; (5)Tolerance: -10%, +50%; (6)Voltage Rating: 25 Volts; (7)ESR: 1.6 Ohms; (8)Operating Temperature Range: -55℃ to +125℃; (9)Termination Style: Axial; (10)Dimensions: 10 mm Dia. x 18 mm L; (11)Product: High Temp Electrolytic Capacitors; (12)Packaging: Ammo; (13)Dissipation Factor DF: 0.1; (14)Leakage Current: 19 uAmps; (15)Load Life: 2000 Hrs; (16)Ripple Current: 210 mAmps; (17)Series: 119 AHT-DIN; (18)Standard Pack Qty: 500.

Features

MAL211936101E3 features: (1)Polarized aluminum electrolytic capacitors, non-solid electrolyte; (2)Axial leads, cylindrical aluminum case, insulated with a blue sleeve; (3)Mounting ring version not available in insulated form; (4)Taped versions up to case 5 mm x 30 mm available for automatic insertion; (5)Charge and discharge proof.

Diagrams

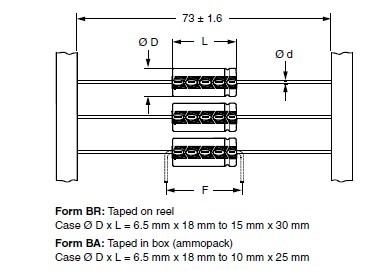

MAL211936101E3 DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

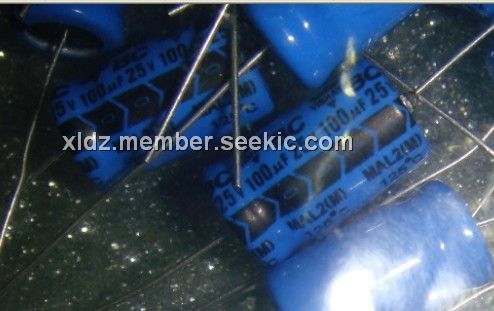

MAL211936101E3
MAL211936101E3
Vishay/BC Components
Aluminum Electrolytic Capacitors - Leaded 100uF 25volts
Data Sheet
0-1: $1.73
1-25: $1.47
25-100: $1.20
100-250: $1.07
250-500: $0.96
