Product Summary
The AO4606 is a 30V complementary MOSFET. The AO4606 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge. The complementary MOSFETs may be used to form a level shifted high side switch, and for a host of other applications. `
Parametrics
AO4606 absolute maximum ratings: (1)Drain-Source Voltage, VDS: 30V; (2)Gate-Source Voltage, VGS: ±20V; (3)Pulsed Drain Current, IDM: 30V; (4)Avalanche Current, IAS, IAR: 10A; (5)Junction and Storage Temperature Range, TJ, TSTG: -55 to 150℃.
Features
AO4606 features: (1)Body Diode Reverse Recovery Time 15 to 18ns when IF=-6.5A, dI/dt=100A/ms; (2)Body Diode Reverse Recovery Charge 9.7 to 11.6nC when IF=-6.5A, dI/dt=100A/ms; (3)Gate resistance 1.5 to 5Ω when VGS=0V, VDS=0V, f=1MHz.

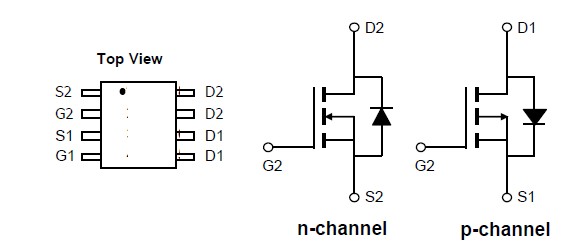

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AO4606 |
Other |
|
Data Sheet |
Negotiable |
|
||||
