Product Summary

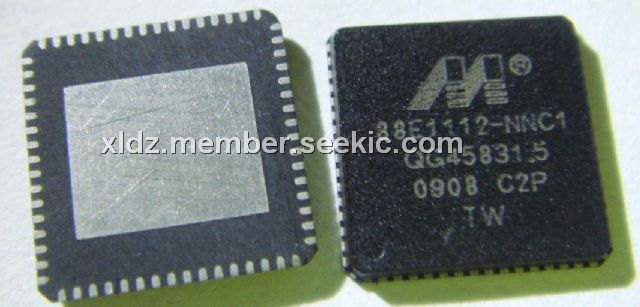

The 88E1112C-NNC1 is a Gigabit Ethernet (GbE) transceiver. The 88E1112C-NNC1 is a fully compliant IEEE 802.3 physical layer device for Ethernet 1000BASE-T, 100BASE-TX, and 10BASE-T applications, with additional functionality of 1000BASE-X and 100BASE-FX in SFP applications. The 88E1112C-NNC1 supports the SGMII (Serial Gigabit Media Independent Interface) to connect to the MAC or switch.
Parametrics
88E1112C-NNC1 absolute maximum rating: nominal frequency: 1.25 GHz or 125 MHz.
Features
88E1112C-NNC1 features: (1)SGMII/SERDES MAC side support; (2)Auto-media support to fi ber applications with same PHY; (3)SFP Module Support, Copper and fi ber SFP modules; Support for embedding into copper SFP modules; (4)Additional integrated SERDES switchable to 1.25 GHz or 125 MHz; (5)Advanced diagnostics capability, Marvell VCT; Integrated CRC error checker, packet counter and generator; (6)Small 64-pin QFN package; (7)Requires only two power supplies; (8)Industrial temperature support.

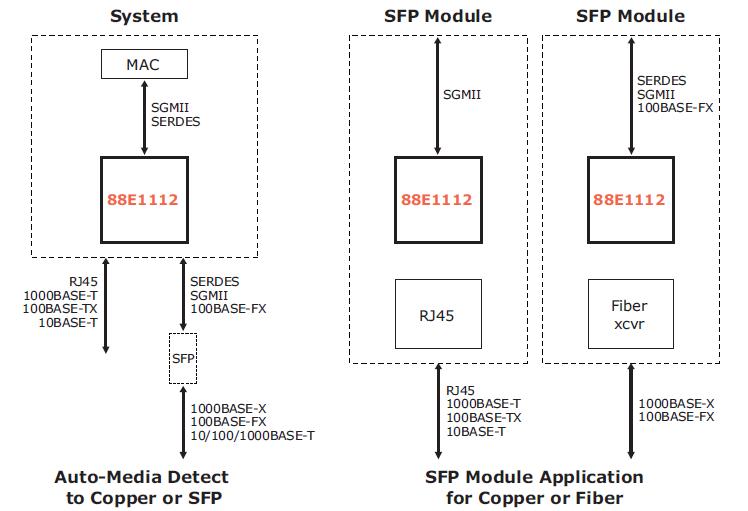

Diagrams
 |
