Product Summary

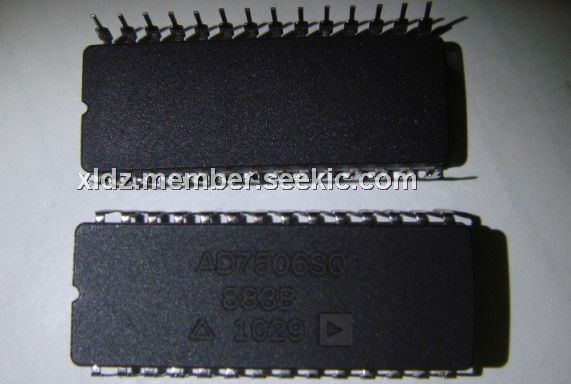

The AD7506SQ/883B is a monolithic CMOS 16-channel analog multiplexer packaged in a 28-pin DIP or a 28-terminal surface mount package.

Parametrics

AD7506SQ/883B absolute maximum ratings: (1)VDD-GND: +17V; (2)VSS-GND: -17V; (3)V between any switch terminals: 25V; (4)digital input voltage range: VDD to GND; (5)switch current: 20mA; (6)storage temperature: -65℃ to +150℃; (7)lead temperature(soldering, 10sec): +300℃.

Features

AD7506SQ/883B features: (1)RON:300Ω; (2)power dissipation:1.5mW; (3)TTL/DTL/CMOS direct interface; (4)break-before-make switching.

Diagrams

AD7506SQ/883B block diagram
