Product Summary
The HD64F3048F16V is a microcontroller (MCU) that integrates system supporting functions together with an H8/300H CPU core having an original Renesas Technology architecture. TheHD64F3048F16V CPU has a 32-bit internal architecture with sixteen 16-bit general registers, and a concise, optimized instruction set designed for speed. The HD64F3048F16V can address a 16-Mbyte linear address space. Its instruction set is upward-compatible at the object-code level with the H8/300 CPU, enabling easy porting of software from the H8/300 Series.
Parametrics
HD64F3048F16V absolute maximum ratings: (1)Input high voltage, VIH: 2.2 to VCC + 0.3 V; (2)Input low voltage, VIL: -0.3 to 0.8 V; (3)Output high voltage, VPH: 2.4V min; (4)Output low voltage, VOL: 0.45 V max; (5)Input leakage current, ILI: 2 μA; (6)VCC current, Read ICC: 40mA typ, 80 mA max; Program ICC: 40mA typ, 80 mA max; Erase ICC: 40mA typ,80 mA max; (7)VPP current Read IPP: 200 μA max.
Features
HD64F3048F16V features: (1)Upward compatibility with H8/300 CPU; (2)Can execute H8/300 Series object programs; (3)General-register architecture; (4)Sixteen 16-bit general registers (also usable as sixteen 8bit registers or eight 32-bit registers); (5)8/16/32-bit data transfer and arithmetic and logic instructions; (6)Multiply and divide instructions; (7)Powerful bit-manipulation instructions; (8)Register direct; (9)Register indirect; (10)Register indirect with displacement; (11)Absolute address; (12)Immediate; (13)Program-counter relative; (14)Memory indirect.

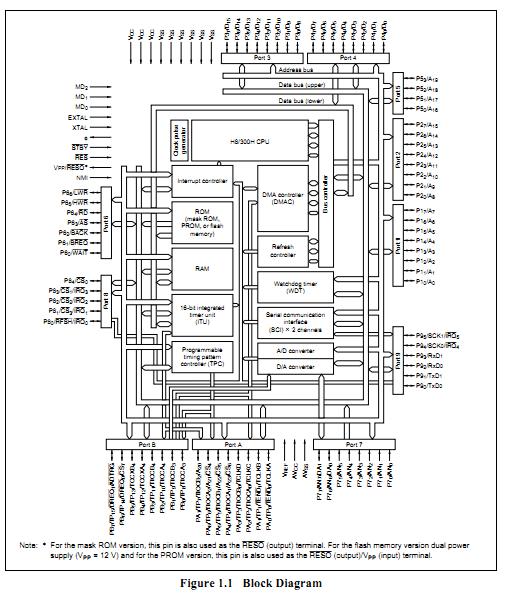

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
HD64F3048F16 |
IC H8 MCU FLASH 128K 100QFP |
Data Sheet |
|
|
||||||||
