Product Summary

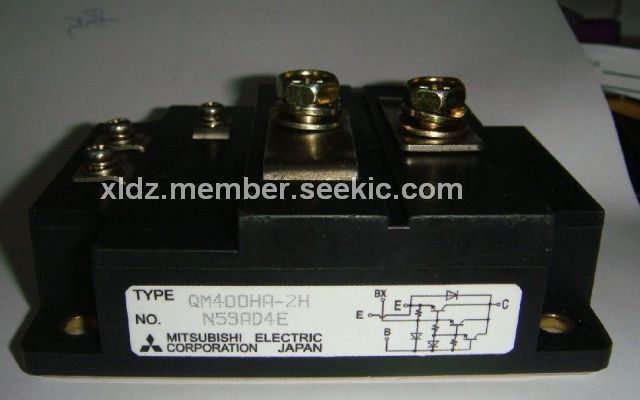

The QM400HA-2H is the high power switching use insulated type Mitsubishi transistor module.
Parametrics
QM400HA-2H absolute maximum ratings: (1)Collector-emitter voltage, IC=1A, VEB=2V: 1000V; (2)Collector-emitter voltage, VEB=2V: 1000V; (3)Collector-base voltage, Emitter open: 1000V; (4)Emitter-base voltage, Collector open: 7V; (5)Collector current: 400A; (6)Collector reverse current: 400A; (7)Collector dissipation, Tc=25℃: 3120W; (8)Base current: 20A; (9)Surge collector reverse current: 4000A; (10)Junction temperature: -40 to 150℃; (11)Storage temperature: -40 to 125℃.
Features
QM400HA-2H features: (1)Collector current: 400A; (2)Collector-emitter voltage: 1000V; (3)DC current gain: 75; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N); (6)File No. E80271.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM400HA-2H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM400HA-2HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
