Product Summary
The MC68HC908AZ602J74Y is a 8-bit microcontroller unit (MCU). It is is based on the customer-specified integrated circuit (CSIC) design strategy.
Parametrics
MC68HC908AZ602J74Y absolute maximum ratings: (1)Supply Voltage, VDD: –0.3 to +6.0 V; (2)Input Voltage, VIN: VSS –0.3 to VDD +0.3 V; (3)Maximum Current Per Pin Excluding VDD and VSS, I: ± 25 mA; (4)Storage Temperature, TSTG: –55 to +150℃; (5)Maximum Current out of VSS, IMVSS: 100 mA; (6)Maximum Current into VDD, IMVDD: 100 mA; (7)Reset IRQ Input Voltage, VHI: VDD + 4 V.
Features
MC68HC908AZ602J74Y features: (1)High-Performance M68HC08 Architecture; (2)Fully Upward-Compatible Object Code with M6805, M146805, and M68HC05 Families; (3)8.4 MHz Internal Bus Frequency; (4)60 Kbytes of FLASH Electrically Erasable Read-Only Memory(FLASH); (5)FLASH Data Security; (6)1 Kbyte of On-Chip Electrically Erasable Programmable Read-Only Memory with Security Option (EEPROM); (7)2 Kbyte of On-Chip RAM; (8)Clock Generator Module (CGM); (9)Serial Peripheral Interface Module (SPI); (10)Serial Communications Interface Module (SCI); (11)8-Bit, 15-Channel Analog-to-Digital Converter (ADC-15); (12)16-Bit, 6-Channel Timer Interface Module (TIMA-6); (13)Programmable Interrupt Timer (PIT); (14)System Protection Features.

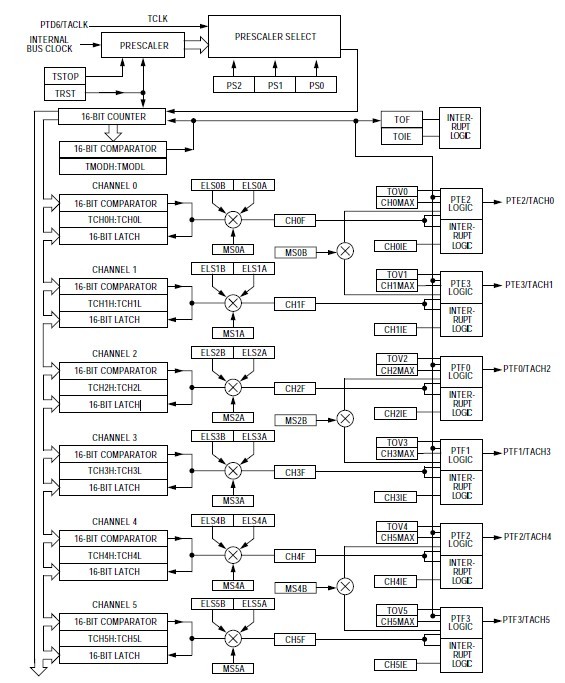

Diagrams
 |
