Product Summary

The 3296W1103LFND is a 3/8 ” square trimpot trimming potentiometer.

Parametrics

3296W1103LFND electrical characteristics: (1)Standard Resistance Range: 10 ohms to 2 megohms(see standard resistance table); (2)Resistance Tolerance: ±10 % std. (tighter tolerance available); (3)Absolute Minimum Resistance: 1 % or 2 ohms max. (whichever is greater); (4)Contact Resistance Variation: 1.0 % or 3 ohms max. (whichever is greater); (5)Adjustability: Voltage: ±0.01 %; Resistance: ±0.05 %; (6)Resolution: Infi nite; (7)Insulation Resistance: 500 vdc. 1,000 megohms min.; (8)Dielectric Strength: Sea Level: 900 vac; 70,000 Feet: 350 vac; (9)Effective Travel: 25 turns nom.

Features

3296W1103LFND features: (1)Multiturn / Cermet / Industrial / Sealed; (2)5 terminal styles; (3)Tape and reel packaging available; (4)Chevron seal design; (5)Listed on the QPL for style RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035; (6)Mounting hardware available(H-117P); (7)RoHS compliant version available; (8)For trimmer applications/processing guidelines.

Diagrams

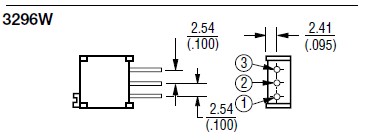

3296W1103LFND dimension
