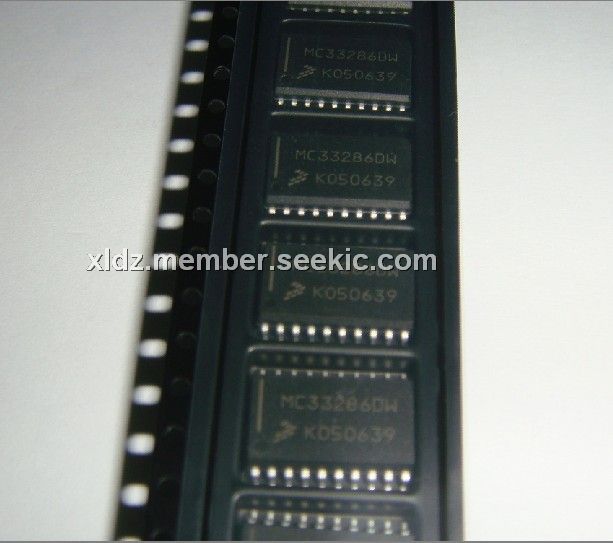

MC33286DW

automotive dual high side driver, SOP20, 14V, ESD Protection 2kV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~1.00

PartNumber:: MC33286DW

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:MC33286DW
US $0.60 - 1.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

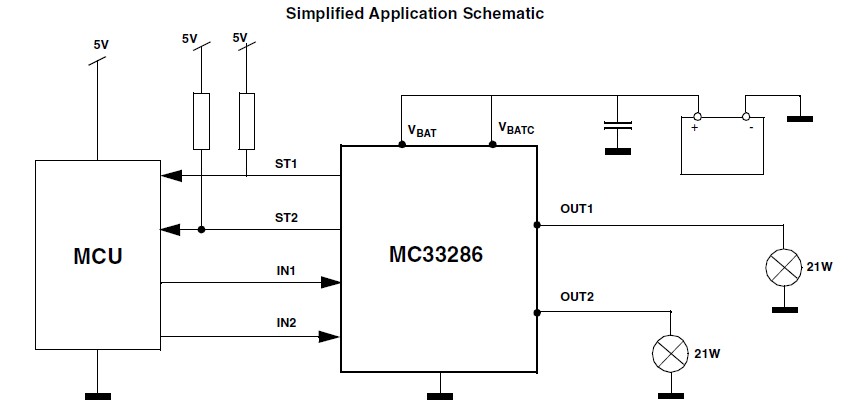

Product Summary

This MC33286DW is a dual high side power switch dedicated for automoive applications. In comparison with mechanical relays, this MC33286DW offers higher reliability as well as protection and diagnostic features. The MC33286DW consists of two independent 35mΩ Rdson switches in a surface mount package. It can be directly interfaced with a microcontroller for control and diagnostic functions. The MC33286DW is fully protected against overcurrents, short-circuits and incorporates an overtemperature shutdown. It can be directly and continuously supplied by the battery and offers a very low quiescent current in standby mode.

Parametrics

MC33286DW absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150 ℃; (2)Storage Temperature Tst: -65 to 150 ℃; (3)Thermal Resistance Junction to Ambient (note 2) Rthja: 70 ℃/W; (4)OUT1, OUT2 Voltage with Respect to Gnd: Continuous/; (5)Pulse; (6)Vout -0.3 to 40 V; (7)OUT1, OUT2 to Vbtap Voltage: Continuous Vout 40 V; (8)St1, St2 Voltage: Continuous/Pulse Vst -0.3 to 5.5 V; (9)IN1, IN2 Voltage: Continuous/Pulse Vin -0.3 to 10 V; (10)In1, In2, St1, St2 Current Iin: +/-4 mA.
