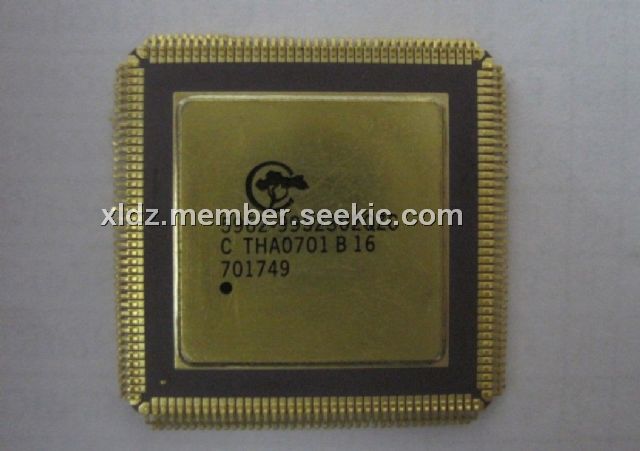

Product Summary

Ultra37000 5.0V Devices
The Ultra37000 devices operate with a 5V supply and can
support 5V or 3.3V I/O levels. VCCO connections provide the
capability of interfacing to either a 5V or 3.3V bus. By
connecting the VCCO pins to 5V the user insures 5V TTL levels
on the outputs. If VCCO is connected to 3.3V the output levels
meet 3.3V JEDEC standard CMOS levels and are 5V tolerant.
These devices require 5V ISR programming.

Features

(1)In-System Reprogrammable. (ISR.) CMOS CPLDs (2)JTAG interface for reconfigurability (3)Design changes do not cause pinout changes (4) Design changes do not cause timing changes

Diagrams

<DIV><IMG src="http://www.seekic.com/uploadfile/ic-mfg/2012712212558750.jpg" border=0></DIV>
