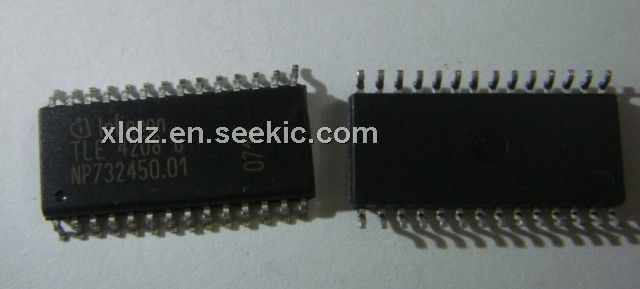

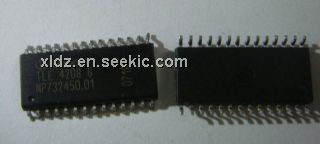

TLE4208G

Product Summary

The TLE4208G is a Quad-Half-Bridge Driver. The TLE 4208G is a fully protected Quad-Half-Bridge-Driver designed specially for automotive and industrial motion control applications. The part is built using the Siemens bipolar high voltage power technology DOPL. In a cascade configuration up to three actuators (DC motors) can be connected between the four half-bridges. These four half-bridges are configured as 2 dual-half-bridges, which are supplied and controlled separately. Operation modes forward (cw), reverse (ccw), brake and high impedance are invoked from a standard interface. The standard enhanced power P-DSO-28 package meets the application requirements and saves PCB-board space and costs. Furthermore the built-in features like diagnosis, over- and undervoltage-lockout, shortcircuit protection, over-temperature protection and the very low quiescent current in stand-by mode will open a wide range of automotive and industrial applications.

Parametrics

TLE4208G absolute maximum ratings: (1)Supply voltage : -0.3 to 45 V; (2)Supply voltage : -1V; (3)Logic input voltages (IN1; IN2; INH12; IN3; IN4; INH34) : -5 to 20 V; (4)Logic output voltage(EF12; EF34) : -0.3 to 20 V; (5)Output current (cont.) : internally limited; (6)Output current (peak) : internally limited; (7)Output current (diode) : -1 to 1 A; (8)Output current (EF) : -2 to 5 mA; (9)Junction temperature : -40 to 150 ℃; (10)Storage temperature : -50 to 150 ℃; (11)Junction pin : -25 K/W; (12)Junction ambient : -65 K/W .

Features

TLE4208G features: (1)Driver for up to 3 motors; (2)Delivers up to 0.8 A continuous; (3)Optimized for DC motor management applications; (4)Very low current consumption in stand-by (Inhibit) mode; (5)Low saturation voltage; typ.1.2 V total @ 25 ℃; 0.4 A; (6)Output protected against short circuit; (7)Error flag diagnosis; (8)Overvoltage lockout and diagnosis; (9)Undervoltage lockout; (10)CMOS/TTL compatible inputs with hysteresis; (11)No crossover current; (12)Internal clamp diodes; (13)Overtemperature protection with hysteresis and diagnosis; (14)Enhanced power P-DSO-Package.

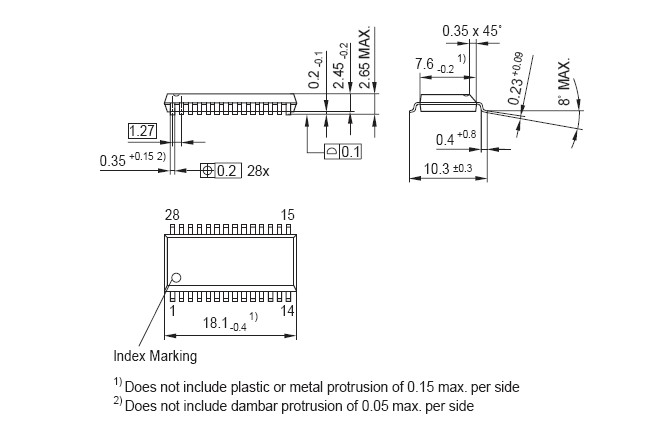

Diagrams
