Product Summary

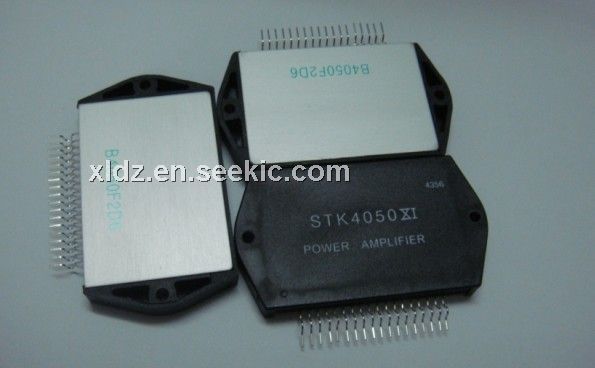

The STK4050XI is an AF Power Amplifier.
Parametrics
STK4050XI absolute maximum ratings: (1)Maximum supply voltage : ±95 V; (2)Thermal resistance : 0.95℃/W; (3)Junction temperature : 150℃; (4)Operating substrate temperature : 125℃; (5)Storage temperature : -30 to +125 ℃.
Features
STK4050XI features: (1)Compact package for thin-type audio sets; (2)Member of pin-compatible series with outputs of 20 to 200W; (3)Easy heat sink design to disperse heat generated in thin type stereo sets; (4)Constant-current circuit to reduce supply switch-on and switch-off shock noise; (5)External supply switch-on and switch-off shock noise muting, load short-circuit protection, thermal shutdown and other circuits can be tailored-designed.

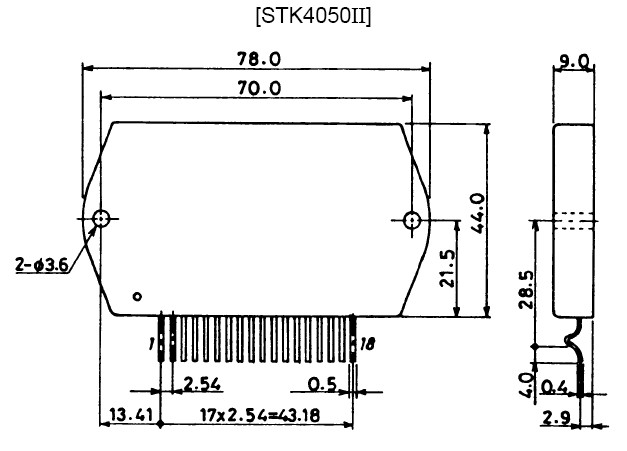

Diagrams
