Product Summary

The ASI PT9701B is a common emitter device designed for class A, AB and C amplifier applications in the 225 - 400 MHz military communications band.

Parametrics

PT9701B absolute maximum ratings: (1)IC: 1.25A; (2)VCES: 45V; (3)PDISS: 14W @ TC=25℃; (4)TJ: -55℃ to +200℃; (5)TSTG: -55℃ to +200℃; (6)θjc: 12℃/W.

Features

PT9701B features: (1)Gold Metalization; (2)Emitter Ballasting; (3)High Gain.

Diagrams

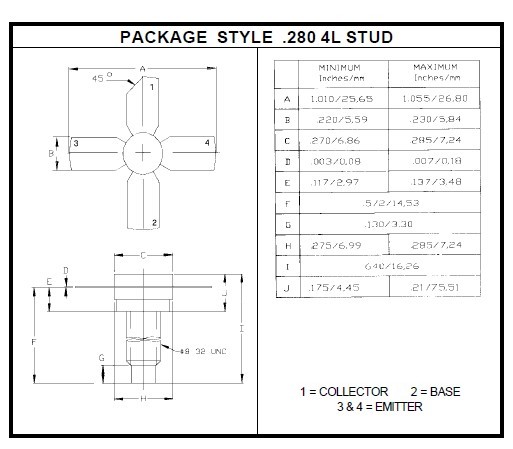

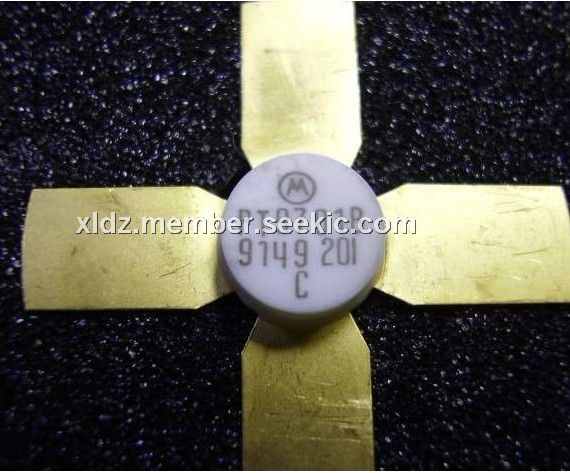

PT9701B PACKAGE STYLE

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PT9701B
PT9701B

Other


Data Sheet

Negotiable
