Product Summary

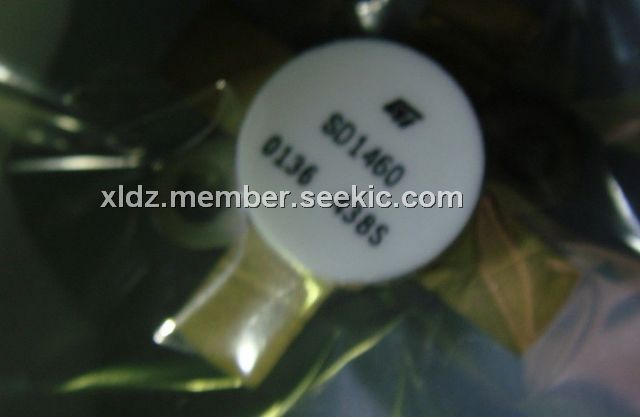

The SD1460 is a 28 V gold metallized epitaxial silicon NPN planar transistor designed for VHF FM broadcast transmitters. This device utilizes diffused emitter resistors to achieve infinite VSWR at rated operating conditions.
Parametrics
SD1460 absolute maximum ratings: (1)VCBO, Collector-Base Voltage: 60 V; (2)VCEO, Collector-Emitter Voltage: 25 V; (3)VCES, Collector-Emitter Voltage: 60 V; (4)VEBO, Emitter-Base Voltage: 4.0 V; (5)IC, Device Current: 16 A; (6)PDISS, Power Dissipation: 230 W; (7)TJ, Junction Temperature: +200℃; (8)TSTG, Storage Temperature: -65 to +150℃.
Features
SD1460 features: (1)108 MHz; (2)28 VOLTS; (3)Efficiency 75%; (4)Common emitter; (5)Gold metallization POUT = 150 W MIN; (6)WITH 9.2 dB GAIN.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SD1460-03 |
STMicroelectronics |
Transistors Bipolar (BJT) NPN 28V 108MHz |
Data Sheet |
Negotiable |
|
||||
|
SD1460 |
STMicroelectronics |
Transistors RF Bipolar Power NPN 28V 108MHz |
Data Sheet |
Negotiable |
|
||||
