Product Summary
The FDS9945 is a N Channel Logic Level MOSFET. It has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. The FDS9945 feature faster switching and lower gate charge than other MOSFET with comparable RDS(on) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency.
Parametrics
FDS9945 absolute maximum ratings: (1)VDSS Drain-Source Voltage: 60V; (2)VGSS Gate-Source Voltage: ±20V; (3)ID Drain Current –Continuous: 3.5A; Pulsed: 10A; (4)Power Dissipation for Single Operation: 2W; (5)TJ, TSTG, Operating and Storage Junction Temperature Range: -55 to +175℃.
Features
FDS9945 features: (1)3.5 A, 60 V RDS(ON) = 0.100Ω @ VGS = 10 V; RDS(ON) = 0.200Ω @ VGS = 4.5V; (2)Optimized for use in switching DC/DC converters with PWM controllers; (3)Very fast switching; (4)Low gate charge.

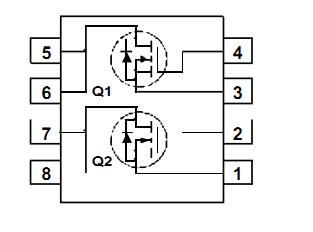

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

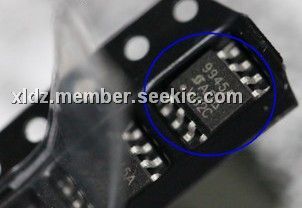

 FDS9945 |
Fairchild Semiconductor |
MOSFET SO-8 |
Data Sheet |
|
|
||||||||||||
|
FDS9945_Q |
Fairchild Semiconductor |
MOSFET SO-8 |
Data Sheet |
Negotiable |
|
||||||||||||
