Product Summary

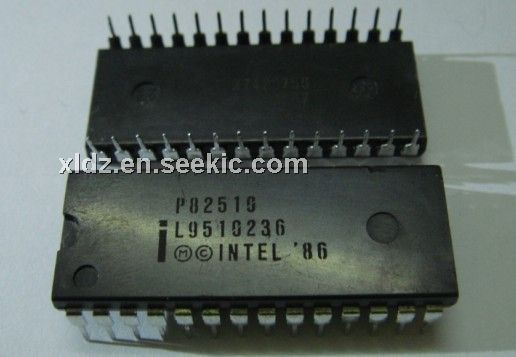

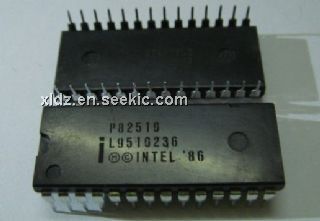

The P82510 is an asynchronous serial controller. The P82510 is an asynchronous serial controller that provides a CPU interface to one transmit and one receive channel. It is Form, Fit, and Function compatible with the Intel 82510. Configuration registers are used to control the serial channel, interrupts, and modes of operation. The CPU controls this device via address and data lines with read/write control. The CPU also uses this interface to read and write data to receive and transmit data through the serial channel. FIFOs and various serial modes can be used to help off-load the CPU from transmitting and receiving data. An interrupt line provides an indication to the CPU that the device requires servicing. The P82510can be configured for 8250A/16450 compatibility.
Parametrics
P82510 absolute maximum ratings: (1)Supply Voltage, VDD : -0.3V to +6.0V; (2)Input Voltage, VIN : -0.3V to VDD +0.3V; (3)Input Pin Current, IIN : ±10 mA, 25℃; (4)Operating Temperature Range : -40℃ to +85℃; (5)Ambient temperature under bias : -40℃ to +85℃; (6)Storage temperature : - 55℃ to +150℃; (7)Lead Temperature : +300℃, 10 sec; (8)Power dissipation : 155 mW, 125℃, 25MHz, 15% Toggle.
Features
P82510 features: (1)Form, Fit, and Function Compatible with the Intela 82510; (2)Packaging options available : 28 Pin Plastic or Ceramic DIP, 28 Pin Plastic Leaded Chip Carrier, 28 Pin Ceramic Leadless Chip Carrier; (3)Asynchronous Serial Channel Operation; (4)Separate Transmit and Receive FIFOs with Programmable Threshold; (5)Programmable Baud Rate Generators up to 288K Baud.
Diagrams
