Product Summary

The MP6757 is a silicon N channel IGBT.

Parametrics

MP6757 absolute maximum ratings: (1) Collector-Emitter Voltage : 600V; (2) Collector Current : 25A; (3) Collector Power Dissipation (Tc = 25℃) : 72W; (4) Junction temperature : 150℃; (5) Screw Torque : 1.5N•m.

Features

MP6757 features: (1)The electrodes are isolated from case; (2)6 IGBTs are 6 free wheeling diodes are built into 1 package.; (3)Enhancement-mode; (4)High speed tr =0.35μs (Max.) (lC =25 A); (5)t r r =0.15μs (Max.) (IF =25 A).

Diagrams

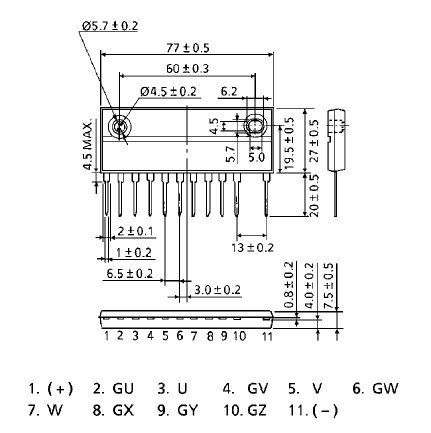

MP6757 dimension
