Product Summary

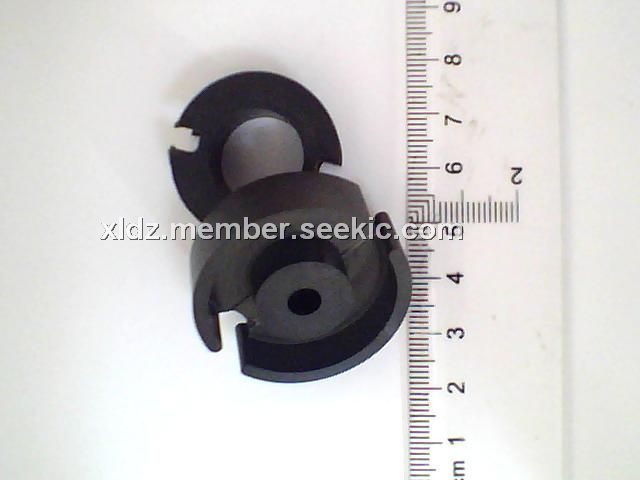

The B65611WR30 is a ferrite and accessory.

Parametrics

B65611WR30 magnetic characterist: (1)Σl/A: 0.26mm-1 with center hole; 0.25mm-1 without center hole; (2)le: 52mm with center hole; 53.5mm without center hole; (3)Ae: 202mm2 with center hole; 213mm2 without center hole; (4)Amin: 173mm2 without center hole; (5)Ve: 10500mm3 with center hole; 11400mm3 without center hole.

Diagrams

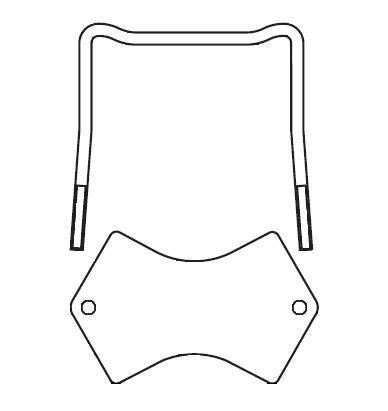

B65611WR30 dimension

B65611D0000R027
B65611D0000R027

EPCOS

EMI/RFI Suppressors & Ferrites P 36X22 N27 7500 +30%-20%

Data Sheet

0-1: $5.88
1-10: $4.52
10-25: $4.11
25-50: $3.74
B65611D0450G048
B65611D0450G048

EPCOS

EMI/RFI Suppressors & Ferrites P 36X22 N48AL=450 +/-2%

Data Sheet

0-1: $8.69
1-10: $6.68
10-25: $6.08
25-50: $5.53
B65611D2500K048
B65611D2500K048

EPCOS

EMI/RFI Suppressors & Ferrites P 36X22 N48 2500 +10%-10%

Data Sheet

0-1: $8.70
1-10: $6.69
10-25: $6.08
25-50: $5.53
B65611T0250G048
B65611T0250G048

EPCOS

EMI/RFI Suppressors & Ferrites P 36X22 N48 250 +2% -2%

Data Sheet

0-1: $10.89
1-10: $8.38
10-25: $7.61
25-50: $6.92
B65611T0400G048
B65611T0400G048

EPCOS

EMI/RFI Suppressors & Ferrites P 36X22 N48 400 +2% -2%

Data Sheet

0-1: $10.89
1-25: $8.38
25-50: $7.61
50-100: $6.92
B65611T0630A048
B65611T0630A048

EPCOS

EMI/RFI Suppressors & Ferrites P 36X22 N48 630 + 3%- 3%

Data Sheet

0-1: $10.88
1-10: $8.37
10-25: $7.61
25-50: $6.92
