Product Summary
The TEESVB21E475M8R is a tantalum chip capacitor. It offers the designer advanced technological design and excellent performance characteristics for filtering, bypassing, coupling, decoupling, blocking, and RC timing circuits. The TEESVB21E475M8R is used extensively in industrial, commercial, entertainment, and medical electronic equipment. The TEESVB21E475M8R is inherently very reliable and there is significant evidence that this reliability improves with age-perhaps indefinitely.
Parametrics
TEESVB21E475M8R general specifications: (1)operating temperature:-55℃ to +125℃; (2)rated voltage:25V; (3)derated voltage:16V; (4)surge voltage:33V; (5)capacitance:0.47uF to 680uF; (6)capacitance tolerance:±20% or ±10%; (7)DC leakage current:0.01C*V(uA) ir 0.5uA, whichever is greater.
Features
TEESVB21E475M8R features: (1)lead-free type. inconformity to RoHS; (2)offer a range of small, high capacity models; (3)succeed to the latest technology plus outstanding performance.

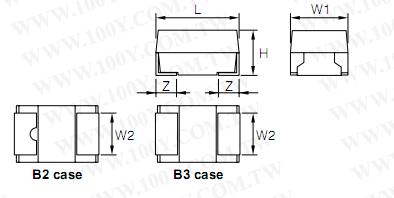

Diagrams
