H21B1

H21B1, photodarlington optical interrupter switch, DIP, 6V, 50mA, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.50 / Piece
10 ~ 50 :	1.20 / Piece
50 ~ 100 :	0.80 / Piece

PartNumber:: H21B1

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-25

From Other Seller

Part Number:H21B1
US $0.80 - 1.50
Quantity:

piece

Product Summary

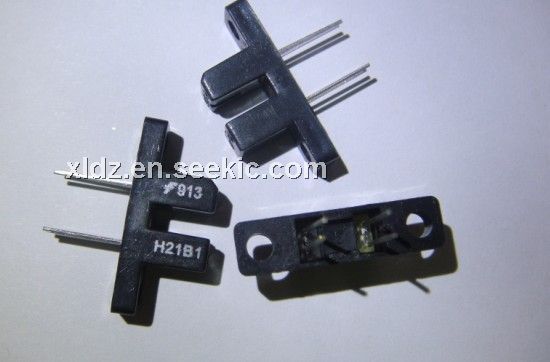

The H21B1 is a photodarlington optical interrupter switch. The H21B1, H21B2 and H21B3 consist of a gallium arsenide infrared emitting diode coupled with a silicon photodarlington in a plastic housing. The packaging system is designed to optimize the mechanical resolution, coupling efficiency, ambient light rejection, cost and reliability. The gap in the housing provides a means of interrupting the signal with an opaque material, switching the output from an “ON” to an “OFF” state.

Parametrics

H21B1 absolute maximum ratings: (1)Operating Temperature : -55 to +100 ℃; (2)Storage Temperature : -55 to +100 ℃; (3)Soldering Temperature (Iron) : 240 for 5 sec ℃; (4)Soldering Temperature (Flow) : 260 for 10 sec ℃; (5)Continuous Forward Current : 50 mA; (6)Reverse Voltage : 6 V; (7)Power Dissipation : 100 mW; (8)Collector to Emitter Voltage : 30 V; (9)Emitter to Collector Voltage : 6 V; (10)Collector Current : 40 mA; (11)Power Dissipation (TC= 25℃) : 150 mW.
