Product Summary

The DRV134PA is an audio balanced line driver that convert a single-ended input to a balanced output pair. These balanced audio drivers consist of high performance op amps with on-chip precision resistors. The DRV134PA is fully specified for high performance audio applications and have excellent ac specifications, including low distortion (0.0005% at 1kHz) and high slew rate (15V/ms). The applications of the DRV134PA include audio differential line driver, audio mix consoles, distribution amplifier, graphic/parametric equalizers, dynamic range processors, digital effects processors, telecom systems, hi-fi equipment, industrial instrumentation.

Parametrics

DRV134PA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 40V; (2)Input Voltage Range: V– to V+; (3)Output Short-Circuit (to ground): Continuous; (4)Operating Temperature: -55℃ to +125℃; (5)Storage Temperature: -55℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

DRV134PA features: (1)Balanced output; (2)Low distortion: 0.0005% at f = 1kHz; (3)Wide output swing: 17Vrms into 600W; (4)High capacitive load drive; (5)High slew rate: 15V/ms; (6)Wide supply range: ±4.5V to ±18V; (7)Low quiescent current: ±5.2mA; (8)8-PIN DIP, SO-8, and SOL-16 packages; (9)Companion to audio differential line receivers: INA134 and INA137; (10)Improved replacement for SSM2142.

Diagrams

DRV134PA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

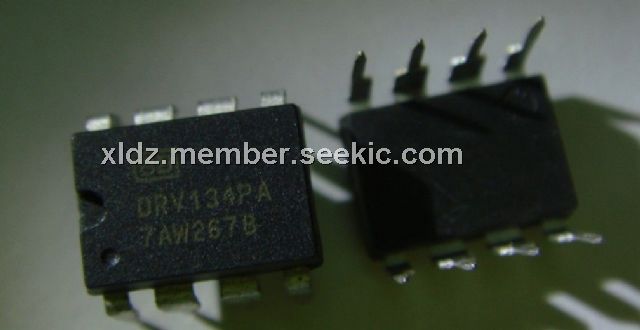

DRV134PA
DRV134PA
Texas Instruments
Audio Amplifiers AUDIO LINE DRIVERS
Data Sheet
0-1: $2.88
1-25: $2.63
25-100: $2.11
100-250: $1.83
DRV134PAG4
DRV134PAG4
Texas Instruments
Audio Amplifiers AUDIO LINE DRIVERS
Data Sheet
0-1: $2.31
1-25: $2.11
25-100: $1.63
100-250: $1.55
