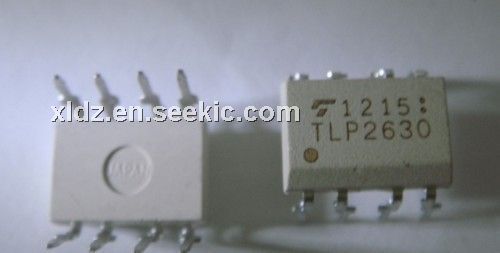

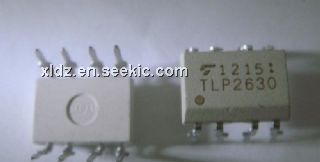

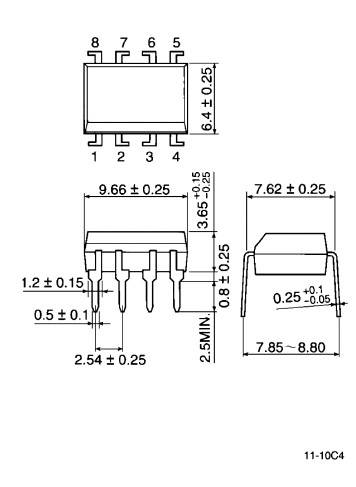

The TLP2630 is a Photocoupler. The TOSHIBA TLP2630 dual photocoupler consists of a pair of GaAℓAs light emitting diode and integrated high gain, high speed photodetector. The output of the detector circuit is an open collector, schottky clamped transistor.This unit is 8−lead DIP.
Parametrics
TLP2630 absolute maximum ratings: (1)Forward current(each channel) : 20 mA; (2)Pulse forward current (each channel) : 30 mA; (3)Reverse voltage(each channel) : 5 V; (4)Output current(each channel) : 16 mA; (5)Output voltage(each channel) : -0.5 to 7 V; (6)Supply voltage (1 minute maximum) : 7 V; (7)Output collector power dissipation(each channel)：40 mW; (8)Operating temperature range : -55 to 125 ℃; (9)Storage temperature range : -40 to 85℃; (10)Lead soldering temperature (10 s) : 260 ℃; (11)Isolation voltage : 2500 Vrms.
Features
TLP2630 features: (1)Input current threshold: IF = 5mA(max.); (2)LSTTL/TTL compatible: 5V supply; (3)Switching speed: 10MBd(typ.); (4)Guaranteed performance over temperature: 0~70℃; (5)Isolation voltage: 2500Vrms(min.); (6)UL recognized:UL1577, file no. E67349.
