Product Summary
The TDA6108AJF is a Triple video output amplifier. The TDA6108AJF contains three video output amplifiers which are intended to drive the three cathodes of a color CRT. The device is contained in a plastic DIL-bent-SIL 9-pin medium power (DBS9MPF) package, and uses high-voltage DMOS technology. To obtain maximum performance, the amplifier should be used with black-current control.
Parametrics
TDA6108AJF absolute maximum ratings: (1)supply voltage : 0 to 250 V; (2)input voltage at pins Vi(1), Vi(2) and Vi(3) : 0 to 12 V; (3)measurement output voltage : 0 to 6 V; (4)absolute value of mean current of measurement output (for three channels) : 0 to 5.6 mA; (5)cathode output voltage : 0 to VDD V; (6)storage temperature : -55 to +150 ℃; (7)junction temperature : -20 to +150 ℃; (8)electrostatic discharge voltage Human Body Model (HBM) : ±3000 V; (9)Machine Model (MM) : ±300 V.
Features
TDA6108AJF features: (1)Typical bandwidth of 9.0 MHz for an output signal of 60 V (p-p); (2)High slew rate of 1310 V/μs; (3)No external components required; (4)Very simple application; (5)Single supply voltage of 200 V; (6)Internal reference voltage of 2.5 V; (7)Fixed gain of 81; (8)Black-Current Stabilization (BCS) circuit with voltage window from 1.5 V to 6 V and current window from +100 μA to -10 mA; (9)Thermal protection.

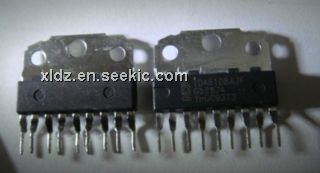

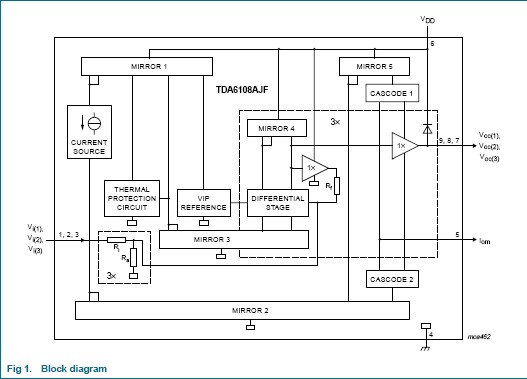

Diagrams
