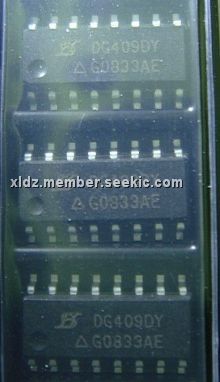

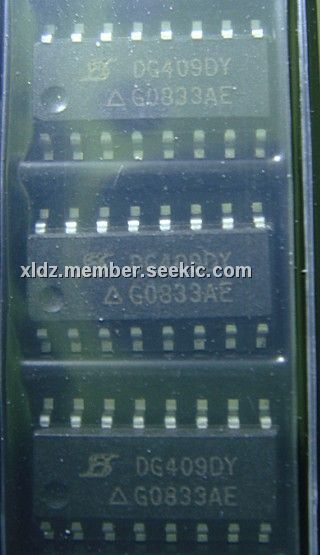

DG409DY-E3

8 channel, single-ended, analog multiplexer, SOIC16, 20 V, RoHS Compliant, 100 Ohm

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.78~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.78~1.00

PartNumber:: DG409DY-E3

Brand:: Vishay Siliconix - vishay | Pack: SOIC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-05

From Other Seller

Part Number:DG409DY-E3
US $0.78 - 1.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

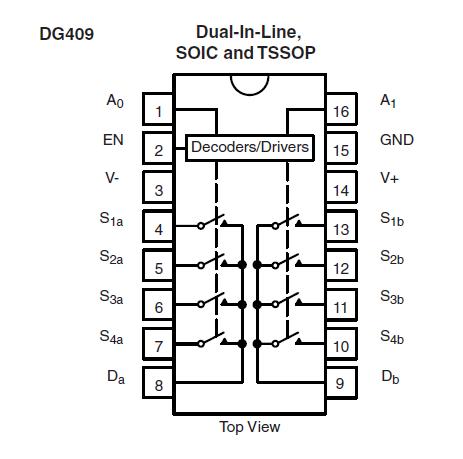

The DG409DY-E3 is an 8 channel single-ended analog multiplexer designed to connect one of eight inputs to a common output as determined by a 3-bit binary address (A0, A1, A2). The DG409DY-E3 is a dual 4 channel differential analog multiplexer designed to connect one of four differential inputs to a common dual output as determined by its 2-bit binary address (A0, A1). Break-before-make switching action protects against momentary crosstalk between adjacent channels. The applications of the DG409DY-E3 include Data acquisition systems, Audio signal routing, ATE systems, Battery powered systems, Single supply systems and Medical instrumentation.

Parametrics

DG409DY-E3 absolute maximum ratings: (1)Voltages Referenced to VV+: 44 V; GND: 25V; (2)Digital Inputs, VS, VD: (V-) - 2 to (V+) + 2V or 20 mA, whichever occurs first; (3)Current (any terminal): 30mA; (4)Peak Current, S or D (pulsed at 1 ms, 10 % duty cycle max.): 100mA; (5)Storage Temperature (DJ, DY suffix): - 65 to 125℃; (6)Power Dissipation: 450mW.

Features

DG409DY-E3 features: (1)Low on-resistance - RDS(on): 100Ω; (2)Low charge injection - Q: 20 pC; (3)Fast transition time - tTRANS: 160 ns; (4)Low power - ISUPPLY: 10 A; (5)Single supply capability; (6)44 V supply max. rating; (7)TTL compatible logic; (8)Compliant to RoHS Directive 2002/95/EC.
