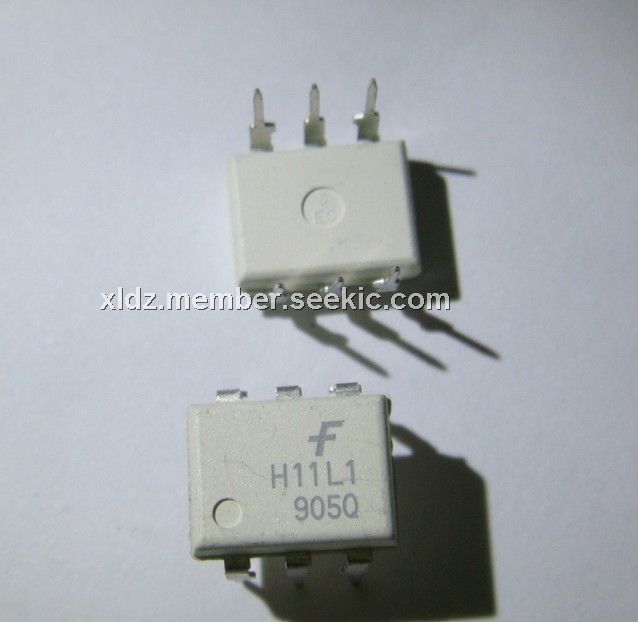

H11L1, 6-Pin DIP Optoisolator, DIP6, 6V, 60mA, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.60

PartNumber:: H11L1

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-23

From Other Seller

Part Number:H11L1
US $0.50 - 0.60
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The H11L1 is a 6-Pin DIP Optoisolator Logic Output, which has a gallium arsenide IRED optically coupled to a high–speed integrated detector with Schmitt trigger output. Designed for applications requiring electrical isolation, fast response time, noise immunity and digital logic compatibility. The applications of the H11L1 include Interfacing Computer Terminals to Peripheral Equipment, Digital Control of Power Supplies, Line Receiver, Digital Control of Motors and Other Servo Machine Applications, Logic to Logic Isolator, Logic Level Shifter.

Parametrics

H11L1 absolute maximum rating: (1)Reverse Voltage about input LED, VR: 6 Volts; (2)Forward Current about input LED,Continuous, IF: 60mA; Peak: 1.2 Amp; (3)LED Power Dissipation @ TA = 25℃ about input LED, PD: 120 mW; Derate above 25℃: 1.41 mW/℃; (4)Total Device Dissipation @ TA = 25℃, PD: 250mW; Derate above 25℃: 2.94 mW/℃; (5)Maximum Operating Temperature, TA: –40 to +85 ℃; (6)Storage Temperature Range, Tstg: –55 to +150℃; (7)Soldering Temperature (10 s), TL: 260 ℃; (8)Isolation Surge Voltage (Pk ac Voltage, 60 Hz, 1 Second Duration), VISO: 7500 Vac(pk).
