Product Summary

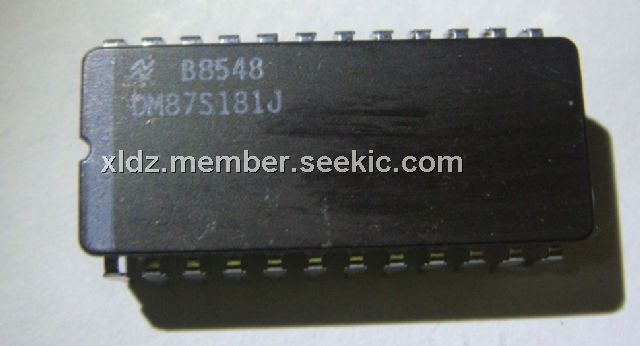

The DM87S181J is a 1024 x 8-BIT TTL PROM. The schottky memories is organized in the popular 1024 words by 8 bits configuration. Memory enable inputs are enabled, the outputs represent the contents of the selected word. When disabled, the 8 outputs go to the "OFF" or high impedance state. PROM is shipped from the factory with lows in all lacations. A high may be programmed into any selected location by following the programming instructions.

Parametrics

DM87S181J absolute maximum ratings: (1)Supply voltage: -0.5 to +7V; (2)Input voltage: -1.2V to +5.5V; (3)Output voltage: -0.5V to +5.5V; (4)Storage temperature: -65 to +150℃; (5)Lead temperature: 300℃.

Features

DM87S181J features: (1)Advanced titanium-tungsten fuses; (2)Schottky-clamped for high speed; (3)PNP inputs for reduced input loading; (4)All DC and AC parameters guaranteed over temperature; (5)Low voltage TEI-SAFE programming; (6)TRI-STATE outputs.

Diagrams

DM87S181J block diagram
