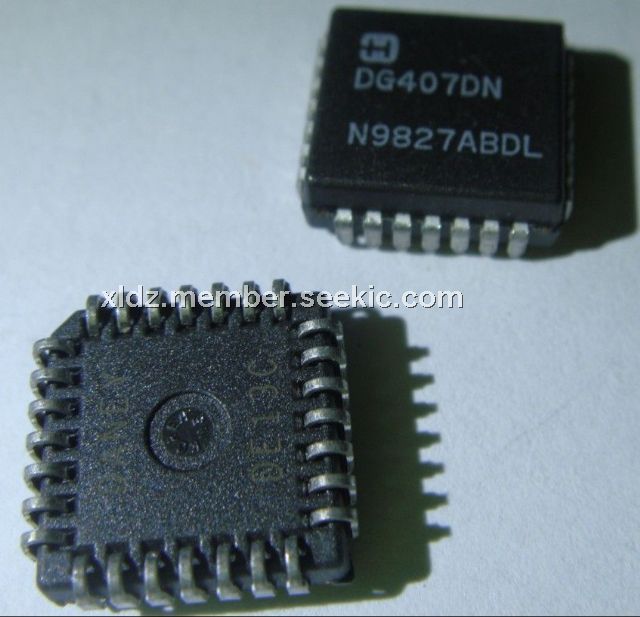

DG407DN

DG407DN, High-Performance CMOS Analog Multiplexer, PLCC28, 44V, 30mA, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~6.00

PartNumber:: DG407DN

Brand:: Maxim Integrated Products - Maxim | Pack: PLCC | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-22

From Other Seller

Part Number:DG407DN
US $5.00 - 6.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

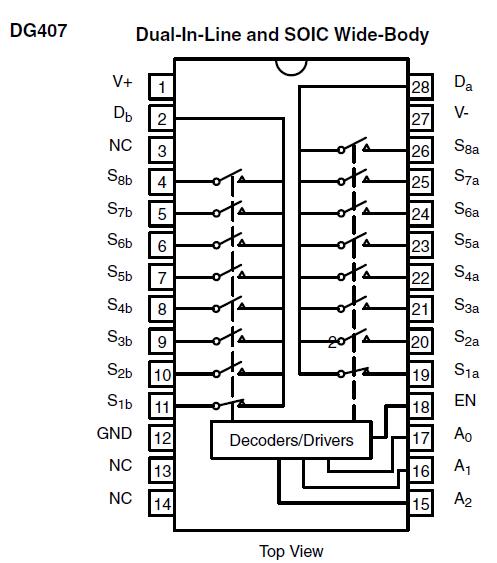

The DG407DN is a 16 channel single-ended analog multiplexer designed to connect one of sixteen inputs to a common output as determined by a 4-bit binary address. The DG407DN selects one of eight differential inputs to a common differential output. Break-before-make switching action protects against momentary shorting of inputs. An on channel conducts current equally well in both directions. In the off state each channel blocks voltages up to the power supply rails. The applications of the DG407DN include Data acquisition systems, Audio signal routing, Medical instrumentation, ATE systems, Battery powered systems, High-rel systems, Single supply systems.

Parametrics

DG407DN absolute maximum ratings: (1)Voltages Referenced to VV+: 44V; GND: 25 V; (2)Digital Inputsa, VS, VD: (V-) -2 to (V+) +2 V or 20 mA, whichever occurs first; (3)Current (Any terminal): 30mA; (4)Peak Current, S or D (Pulsed at 1 ms, 10 % duty cycle max.): 100mA; (5)Storage Temperature, (AK, AZ Suffix): -65 to 150℃; (DJ, DN Suffix): -65 to 125℃; (6)Power Dissipation (Package), 28-Pin Plastic DIP: 625 mW; 28-Pin CerDIP: 1.2 W; 28-Pin Plastic PLCC: 450 mW; LCC-28: 1.35 W; 28-Pin Widebody SOIC: 450 mW.

Features

DG407DN features: (1)Low on-resistance - RDS(on): 50Ω; (2)Low charge injection - Q: 15 pC; (3)Fast transition time - tTRANS: 200 ns; (4)Low power: 0.2 mW; (5)Single supply capability; (6)44 V supply max. rating.
