Product Summary

The BTA40-800B is a 40A TRIAC. Available in high power packages, the BTA40-800B is suitable for general purpose AC power switching. The device can be used as an ON/ OFF function in applications such as static relays, heating regulation, water heaters, induction motor starting circuits, welding equipment, or for phase control operation in high power motor speed controllers, soft start circuits. Thanks to its clip assembly technique, the BTA40-800B provides a superior performance in surge current handling capabilities. By using an internal ceramic pad, the BTA40-800B provides voltage insulated tab (rated at 2500 V RMS) complying with UL standards (File ref.:E81734).

Parametrics

BTA40-800B absolute maximum ratings: (1)IT(RMS), RMS on-state current (full sine wave): 40A; (2)ITSM, non repetitive surge peak on-state current: 420A when F=60Hz, t=16.7ms; 400A when F=50Hz, t=20ms; (3)It, It value for fusing: 880As; (4)dI/dt, critical rate of rise of on-state current: 50A/μs; (5)VDSM/VRSM, non repetitive surge peak off-state voltage: VDRM/VRRM+10V; (6)IGM, peak gate current: 8A; (7)PG(AV), average gate power dissipation: 1W; (8)Tstg, storage junction temperature range: -40 to 150℃; (9)Tj, operating junction temperature range: -40 to 125℃.

Features

BTA40-800B features: (1)IT(RMS): 40 A; (2)VDRM/VRRM: 600 and 800 V; (3)IGT (Q1): 50 mA.

Diagrams

BTA40-800B circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

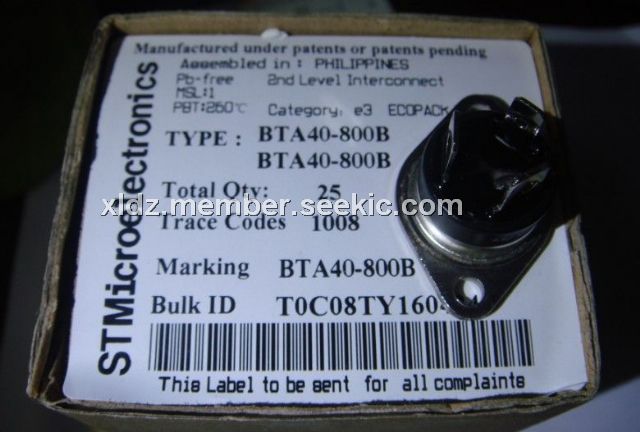

BTA40-800B
BTA40-800B

STMicroelectronics

Triacs 40 Amp 800 Volt

Data Sheet

0-1: $5.26
1-10: $4.73
10-100: $3.89
100-250: $3.58
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BTA40
BTA40

Other


Data Sheet

Negotiable
BTA40 A
BTA40 A

Other


Data Sheet

Negotiable
BTA40 B
BTA40 B

Other


Data Sheet

Negotiable
BTA40-400B
BTA40-400B

STMicroelectronics

Triacs 40A STANDARD TRIACS

Data Sheet

Negotiable
BTA40-600B
BTA40-600B

STMicroelectronics

Triacs 40 Amp 600 Volt

Data Sheet

0-1: $3.04
1-10: $2.94
10-100: $2.86
100-250: $2.77
BTA40-700B
BTA40-700B

STMicroelectronics

Triacs 40 Amp 700 Volt 50mA TRIAC

Data Sheet

0-1: $4.77
1-10: $3.71
10-100: $3.59
100-250: $3.49
