Product Summary

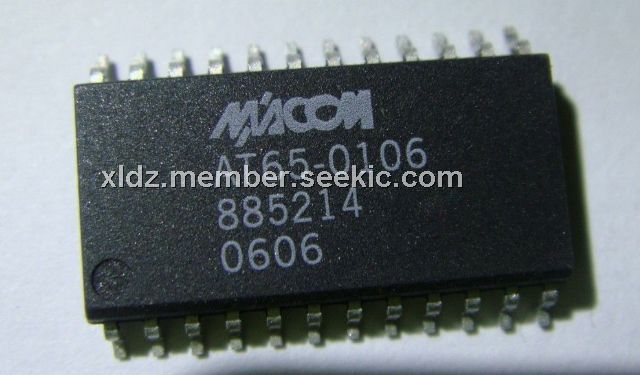

The AT65-0106 is a GaAs FET 6-bit digital attenuator with a 1 dB minimum step size and a 50 dB total attenuation range. This device is in a SOW-24, wide body plastic surface mount package. The AT65-0106 is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.
Parametrics
AT65-0106 absolute maximum ratings: (1)VCC: -0.5V ≤ VCC ≤ +7.0V; (2)VEE: -8.5V ≤ VEE ≤ +0.5V; (3)VCC - VEE: -0.5V ≤ VCC - VEE ≤ 14.5V; (4)Vin4: -0.5V ≤ Vin ≤ VCC + 0.5V; (5)Operating Temperature: -40 to +85℃; (6)Storage Temperature: -65 to +125℃.
Features
AT65-0106 features: (1)Attenuation: 1 dB Steps to 50 dB; (2)Low DC Power Consumption; (3)Integral TTL Driver; (4)50 ohm Impedance; (5)Test Boards are Available; (6)Tape and Reel Packaging Available; (7)SOW-24 Package.

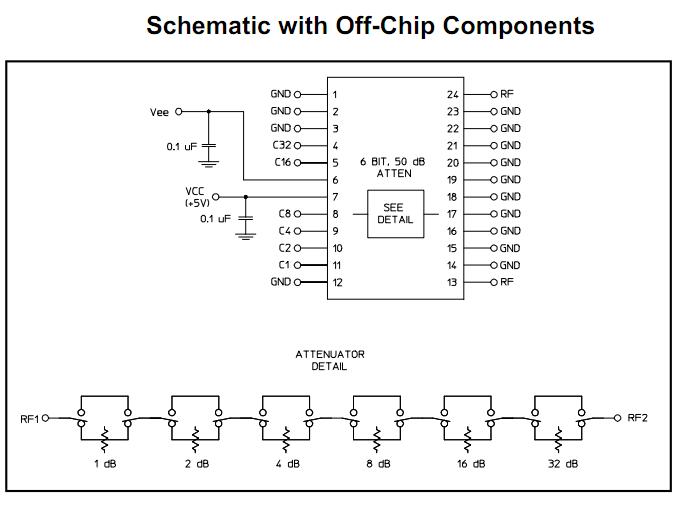

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT65-0106 |
Other |
|
Data Sheet |
Negotiable |
|
||||
