Product Summary

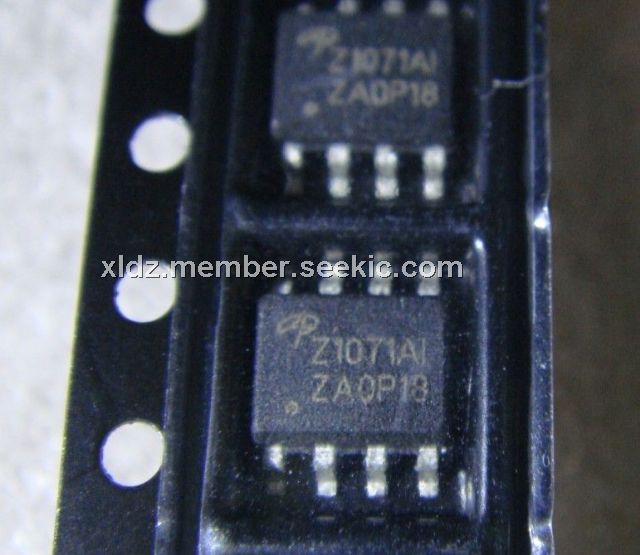

The AOZ1071AI is a high efficiency, simple to use, 2A buck regulator. The AOZ1071AI works from a 4.5V to 16V input voltage range, and provides up to 2A of continuous output current with an output voltage adjustable down to 0.8V. The AOZ1071AI comes in an SO-8 package and is rated over a -40℃ to +85℃ ambient temperature range. The applications of the AOZ1071AI include Point of load dc/dc conversion PCIe graphics cards, Set top boxes, DVD drives and HDD, LCD panels, Cable modems, Telecom/Networking/Datacom equipment.
Parametrics
AOZ1071AI absolute maximum ratings: (1)Supply Voltage (VIN): 18V; (2)LX to AGND: -0.7V to VIN +0.3V; (3)EN to AGND: -0.3V to VIN +0.3V; (4)FB to AGND: -0.3V to 6V; (5)COMP to AGND: -0.3V to 6V; (6)PGND to AGND: -0.3V to +0.3V; (7)Junction Temperature (TJ): +150℃; (8)Storage Temperature (TS): -65℃ to +150℃; (9)ESD Rating: 2kV.
Features
AOZ1071AI features: (1)4.5V to 16V operating input voltage range; (2)130 mΩ internal PFET switch for high efficiency: up to 95%; (3)Internal Schottky Diode; (4)Internal soft start; (5)Output voltage adjustable to 0.8V; (6)2A continuous output current; (7)Fixed 500kHz PWM operation; (8)Cycle-by-cycle current limit; (9)Short-circuit protection; (10)Thermal shutdown; (11)Small size SO-8 package.

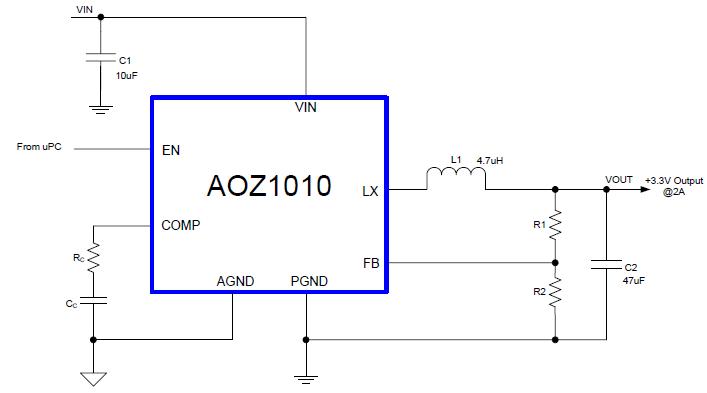

Diagrams
 |
