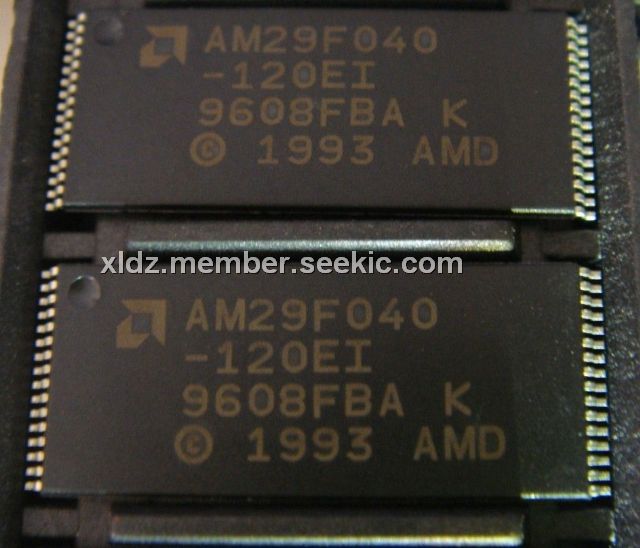

AM29F040-120EI

AM29F040-120EI, 4 Megabit CMOS Sector Erase Flash Memory, TSOP32, 7V, 200mA, Advanced Micro Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.60~2.50

PartNumber:: AM29F040-120EI

Brand:: Advanced Micro Devices - AMD | Pack: TSOP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-21

From Other Seller

Part Number:AM29F040-120EI
US $1.60 - 2.50
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

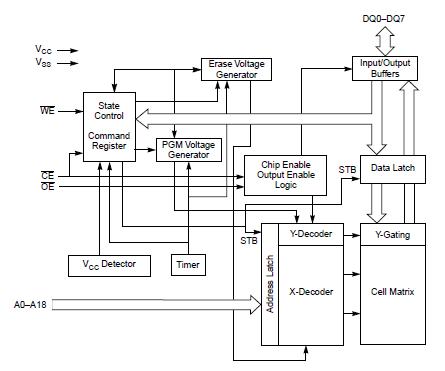

The AM29F040-120EI is a 4 Mbit, 5.0 Volt-only Flash memory organized as 512 Kbytes of 8 bits each. The AM29F040-120EI is offered in a 32-pin package. This device is designed to be programmed in-system with the standard system 5.0 V VCC supply. A 12.0 V VPP is not required for write or erase operations. The device can also be reprogrammed in standard EPROM programmers.

Parametrics

AM29F040-120EI absolute maximum ratings: (1)Storage Temperature Ceramic Packages: -65℃ to +150℃; (2)Plastic Packages: 65℃ to +125℃; (3)Ambient Temperature with Power Applied: -55℃ to +125℃; (4)Voltage with Respect to Ground, All pins except A9: -2.0 V to +7.0 V; (5)VCC: -2.0 V to +7.0 V; (6)A9: -2.0 V to +13.0 V; (7)Output Short Circuit Current: 200 mA.

Features

AM29F040-120EI features: (1)5.0 V±10% for read and write operations; (2)Compatible with JEDEC-standards; (3)Package options, 32-pin PLCC; 32-pin TSOP; 32-pin PDIP; (4)Minimum 100,000 write/erase cycles guaranteed; (5)High performance, 55 ns maximum access time; (6)Sector erase architecture, Uniform sectors of 64 Kbytes each; Any combination of sectors can be erased. Also supports full chip erase.; (7)Sector protection, Hardware method that disables any combination; (8)of sectors from write or erase operations; (9)Embedded Erase Algorithms, Automatically preprograms and erases the chip or any combination of sectors; (10)Embedded Program Algorithms, Automatically programs and verifies data at specified address; (11)Data Polling and Toggle Bit feature for detection of program or erase cycle completion; (12)Erase suspend/resume, Supports reading data from a sector not being erased; (13)Low power consumption; (14)Enhanced power management for standby mode.
