Product Summary

The 74HC4094D is a high-speed Si-gate CMOS device and is pin compatible with the "4094" of the "4000B" series. It is specified in compliance with JEDEC standard no. 7A. The applications of 74HC4094D include Serial-to-parallel data conversion, Remote control holding register.

Parametrics

74HC4094D absolute maximum ratings: (1)propagation delay CL = 15pF; VCC = 5 V: 15 ns at CP to QS1, 13 ns at CP to QS2, 20 ns at CP to QPn, 18 ns at STR to QPn; (2)maximum clock frequency: 95 MHz; (3)input capacitance: 3.5pF; (4)power dissipation capacitance per package: 83pF.

Features

74HC4094D features: (1) Output capability: standard; (2) ICC category: MSI.

Diagrams

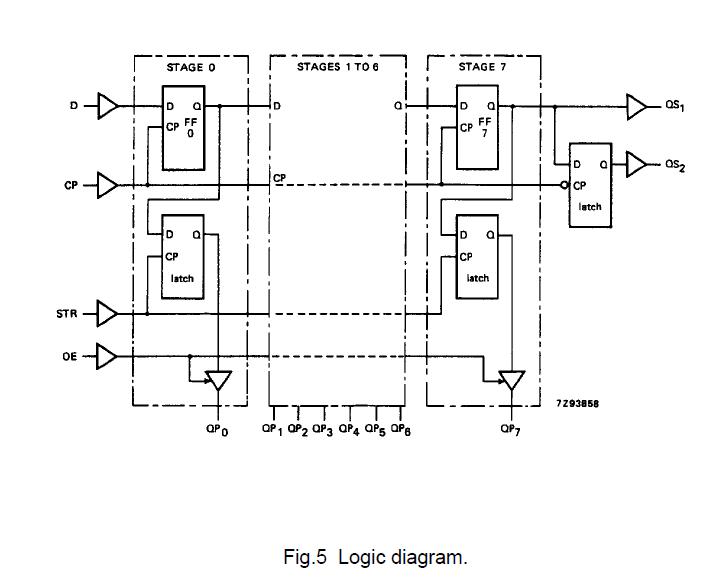

74HC4094D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HC4094D,652
74HC4094D,652

NXP Semiconductors

Counter Shift Registers 8-STAGE BUS REGISTER

Data Sheet

0-1: $0.23
1-25: $0.20
25-100: $0.17
100-250: $0.15
74HC4094D,653
74HC4094D,653

NXP Semiconductors

Counter Shift Registers 8-STAGE SHIFT AND STORE BUS REG

Data Sheet

0-1: $0.10
1-25: $0.09
25-100: $0.09
100-250: $0.08
74HC4094DB,118
74HC4094DB,118

NXP Semiconductors

Counter Shift Registers 8-STAGE SHIFT AND

Data Sheet

0-1: $0.11
1-25: $0.10
25-100: $0.09
100-250: $0.09
74HC4094DB,112
74HC4094DB,112

NXP Semiconductors

Counter Shift Registers 8-STAGE SHIFT AND

Data Sheet

0-1: $0.23
1-25: $0.20
25-100: $0.17
100-250: $0.15
74HC4094DB-T
74HC4094DB-T

NXP Semiconductors

Counter Shift Registers 8-STAGE SHIFT AND STORE BUS REG

Data Sheet

Negotiable
74HC4094DB
74HC4094DB

NXP Semiconductors

Counter Shift Registers 8-STAGE SHIFT AND STORE BUS REG

Data Sheet

Negotiable
