Product Summary

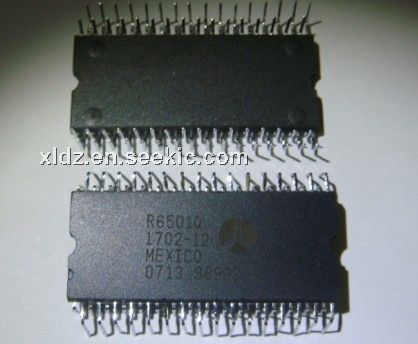

The R6501Q is an One-Chip Microprocessor. The R6501Q is a complete, high performance 8-bit NM08-3 microcomputer on a single chip and is compatible with all members of the R6500 family. The R6501Q consists of an enhanced 6502 CPU, an internal clock oscillator, 192 bytes of Random Access Memory (RAM), and versatile interface circuitry. The interface circuitry includes two-16-bit programmable timer/counters, 32 bidirectional input/output lines (including four edge-sensitive lines and input latching on one 8-bit port), a full-duplex serial I/O channel, ten interrupts, and bus expandability.

Parametrics

R6501Q absolute maximum ratings: (1)Supply Voltage : -0.3 to +7.0 Vdc; (2)Input Voltage : -0.3 to +7.0 Vdc; (3)Operating Temperature Range : TL to TH; (4)Commercial : 0 to +70℃; (5)Industrial : -40 to +85℃; (6)Storage Temperature Range : -55 to +150℃.

Features

R6501Q features: (1)192-byte static RAM; (2)Ten interrupts Four edge-sensitive lines; two positive, two negative; (3)Reset and non-maskable interrupt; (4)Two counter underflows; (5)Serial data received and serial data transmitted; (6)Bus expandable to 64K bytes of external memory; (7)Flexible clock circuitry -2 MHz (R6501A) or 1 MHz (R6501) internal operation; (8)Crystal or clock input; (9)1 μs minimum instruction execution time at 2 MHz; (10)Single + 5V power supply; (11)12 mW stand-by power for 32 bytes of the 192-byte RAM; (12)Available in 64-pin plastic QUIP and 66-pin PLCC packages.

Diagrams

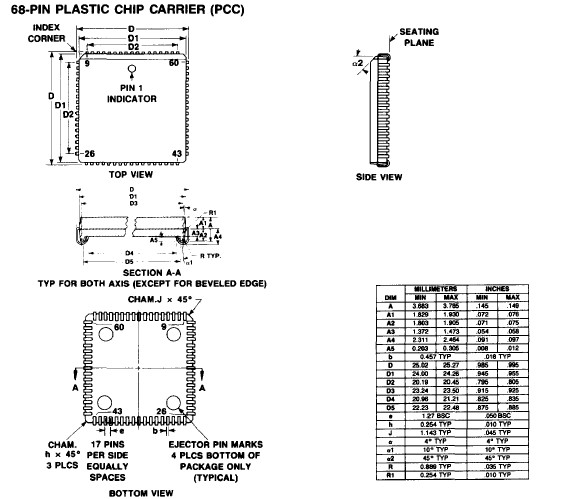

R6501Q dimension
