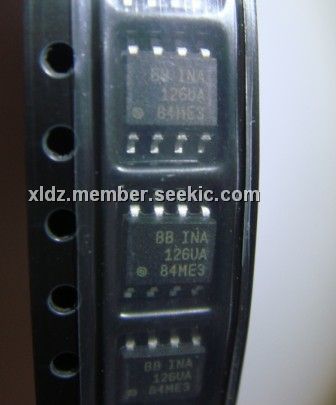

Product Summary

The INA126UA/2K5 is a micro power instrumentation amplifier with single and dual versions. The INA126UA/2K5 is a precision instrumentation amplifier for accurate, low noise differential signal acquisition. The two-op-amp design of the INA126UA/2K5 provides excellent performance with very low quiescent current (175μA/channel). This, combined with a wide operating voltage range of ±1.35V to ±18V, makes the INA126UA/2K5 ideal for portable instrumentation and data acquisition systems.

Parametrics

INA126UA/2K5 absolute maximum ratings: (1)Power Supply Voltage, V+ to V–: 36V; (2)Input Signal Voltage: (V–)–0.7 to (V+)+0.7V; (3)Input Signal Current: 10mA; (4)Output Short Circuit: Continuous; (5)Operating Temperature: –55℃ to +125℃; (6)Storage Temperature: –55℃ to +125℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

INA126UA/2K5 features: (1)Low quiescent current: 175μA/chan.; (2)Wide supply range: ±1.35V to ±18V; (3)Low offset voltage: 250μV max; (4)Low offset drift: 3μV/℃ max; (5)Low noise: 35nV/√Hz; (6)Low input bias current: 25nA max; (7)8-PIN DIP, SO-8, MSOP-8 surface- mount dual: 16-Pin DIP, SO-16, SSOP-16.

Diagrams

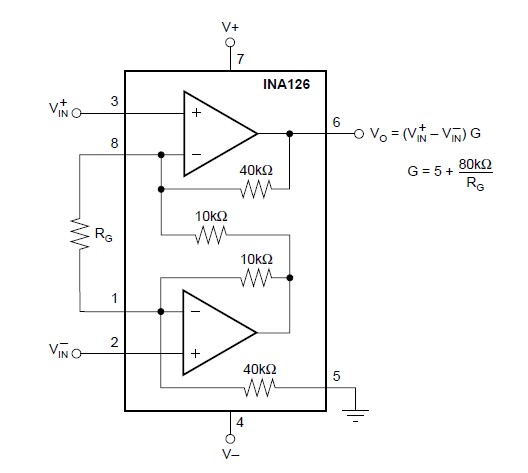

INA126UA/2K5 block diagram
