Product Summary

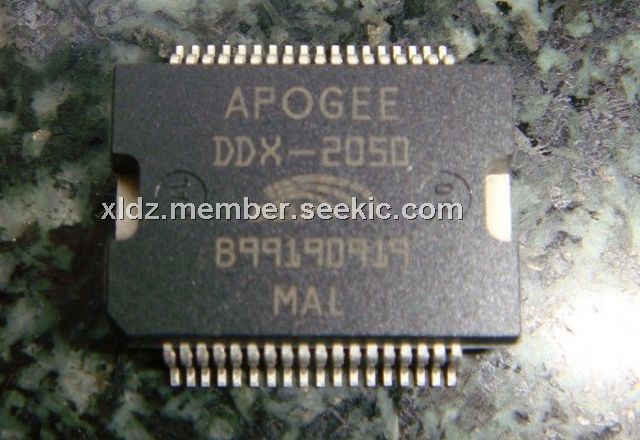

The DDX-2050 is an All-Digital High Efficiency Power Amplifier. The DDX-2050 power device is a monolithic dual channel H-Bridge that can provide up to 30 watts per channel of audio power at very high efficiency. The DDX-2050 power device contains a logic interface, integrated bridge drivers, high efficiency MOSFET output transistors and protection circuitry. The device may be used as a dual bridge or reconfigured as a single bridge with double the output current capability. The applications of the DDX-2050 include digital powered speakers, pc sound cards, car audio, surround sound systems, digital audio components.
Parametrics
DDX-2050 absolute maximum ratings: (1)VCC, Power supply voltage: 40 V; (2)VL, Input logic reference: 5.5 V; (3)Tj, Operating junction temperature range: -40 to +150℃; (4)Tstg, Storage temperature range: -40 to +150℃.
Features
DDX-2050 features: (1)High output capability; (2)2 x 30W into 8Ω or 1 x 60W into 4Ω @ <1% THD; (3)Single supply (+9V to +30V); (4)Compact surface mount package; (5)High efficiency, >88%; (6)Thermal overload and short circuit protection.

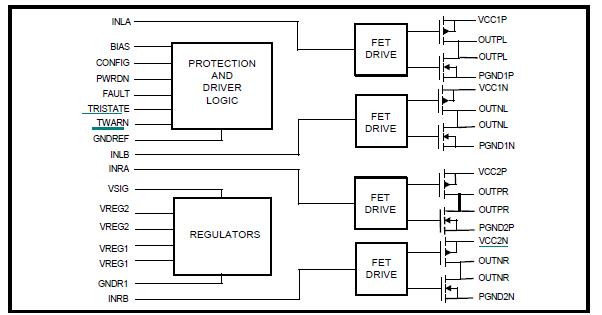

Diagrams
 |
